Washdown Bag Sealers

Simply Pure.

Hygienic Packaging in an Easy-to-Clean Design

EMPLEX NEMA 4- and 4X-rated Bag Sealers are trusted worldwide for packaging meat, poultry, seafood, agricultural and chemical products. All exposed surfaces are thoughtfully designed for fast, thorough washdown and corrosion protection. Control boxes and electrical enclosures are constructed from Stainless Steel 316 with a water shedding design and positioned for optimal protection.

Key Benefits

Nema4 & Nema 4x Washdown
Nema4 & Nema 4x Washdown

Stainless Steel and Chemical Resistant

Washdown Conveyors, Motors, & Control Panel

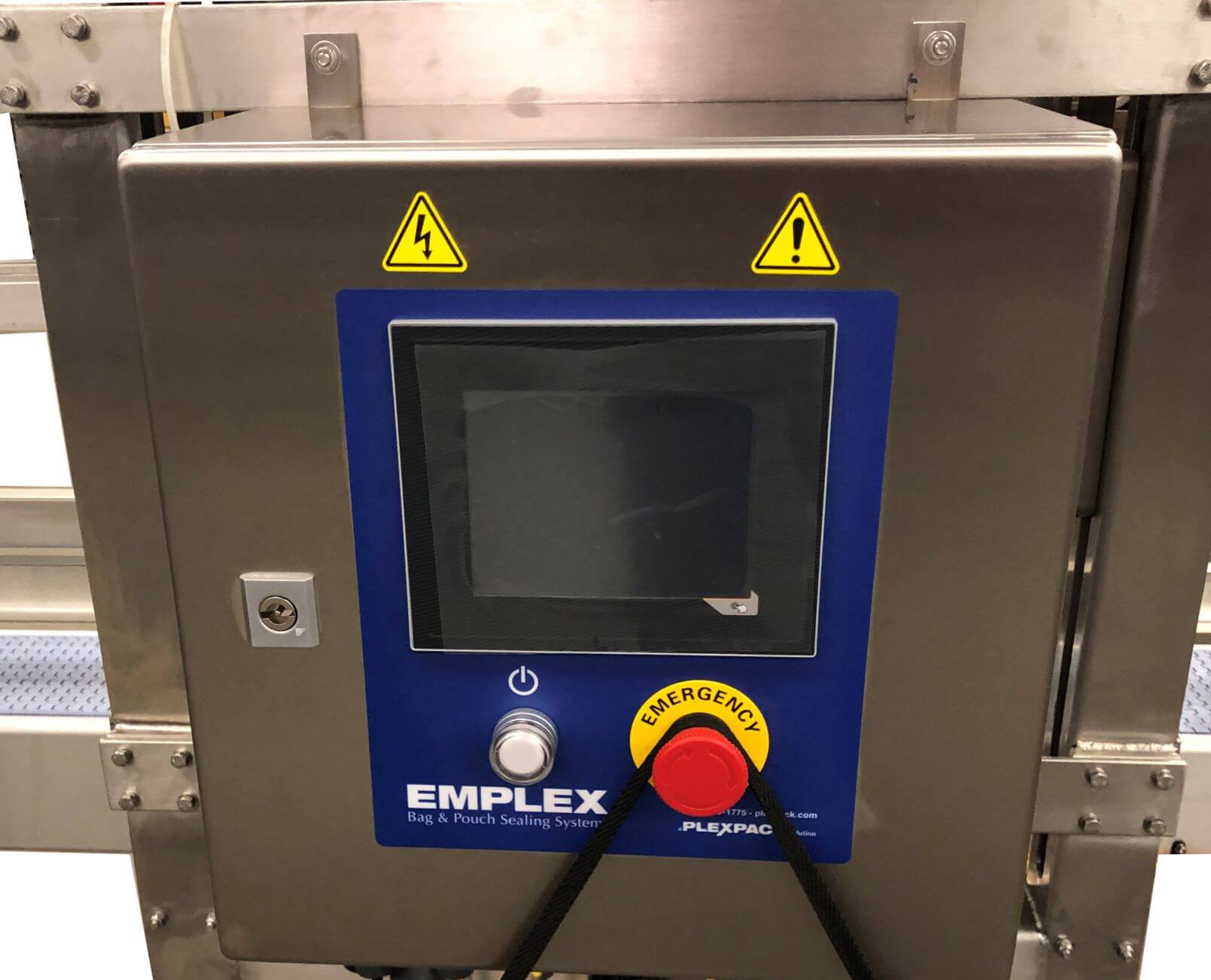

Control
Control


Easy-Use Touchscreen,

Customizable Sealing Recipes

Diagnostics

PLUG & PLAY
PLUG & PLAY


Low Maintenance Water-Shedding Design

Simple Operation & Programming

validatable high speed heavy duty sealer

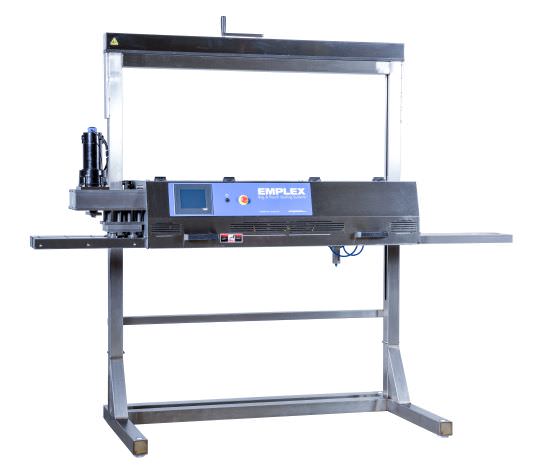

MPS14000

Plexpack's MPS 14000 is a versatile high performance sealer that provides an ideal solution for a wide range of applications where high throughput and validatable sealing are priorities. The MPS 14000 provides high speed hermetic sealing on any type of heat sealable bag, up to 12 mil/300 micron thick (6 mil/150 micron maximum when gusseted). The sealing process can be adjusted to accommodate variations in material and bag style, ensuring reliable seal integrity on every bag.

With dual heating and cooling zones, Plexpack’s NEMA-rated MPS14000 delivers high-speed validatable sealing at an extraordinary 1500 inches (3810 cm) per minute on any style heat sealable bag, including paper poly and heavy-duty materials. It comes with your choice of NEMA 4 or NEMA 4X-rated components and electrical protection

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” / 3.2 mm,
1/4” / 6.35 mm, 3/8” / 9.5 mm,
1/2” 12.7 mm, 3/4” /19.05 mm
 Seal Throat Depth 3.5” / 8.9 cm
 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame and Legs
 Infeed Direction  Right to Left or Right to Left
 Height Adjustment 25.25” -57.5” (645-1,457 mm) by crank
 Pressure Rollers Stainless Steel
 Electrical 208-240V 1PH, 50/60Hz 13 A
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 1500” (38.10 m) per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 20” (50.8 cm) heating bars
15” (38.1 cm) air cooling
 Pressure Range 0-5 bar (0-72.5 PSI)
 Contoller

Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.

Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.

 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning NEMA 4/4X Washdown capable
Options

 Stainless Sealer Band
 Rubberized Pressure Roller
0-230 degrees Celsius Temperature Range
0-446 degrees Fahrenheit Temperature Range
5.5” (14 cm) throat depth
Extended Height Stands or Table Top Frame
Custom Conveyors

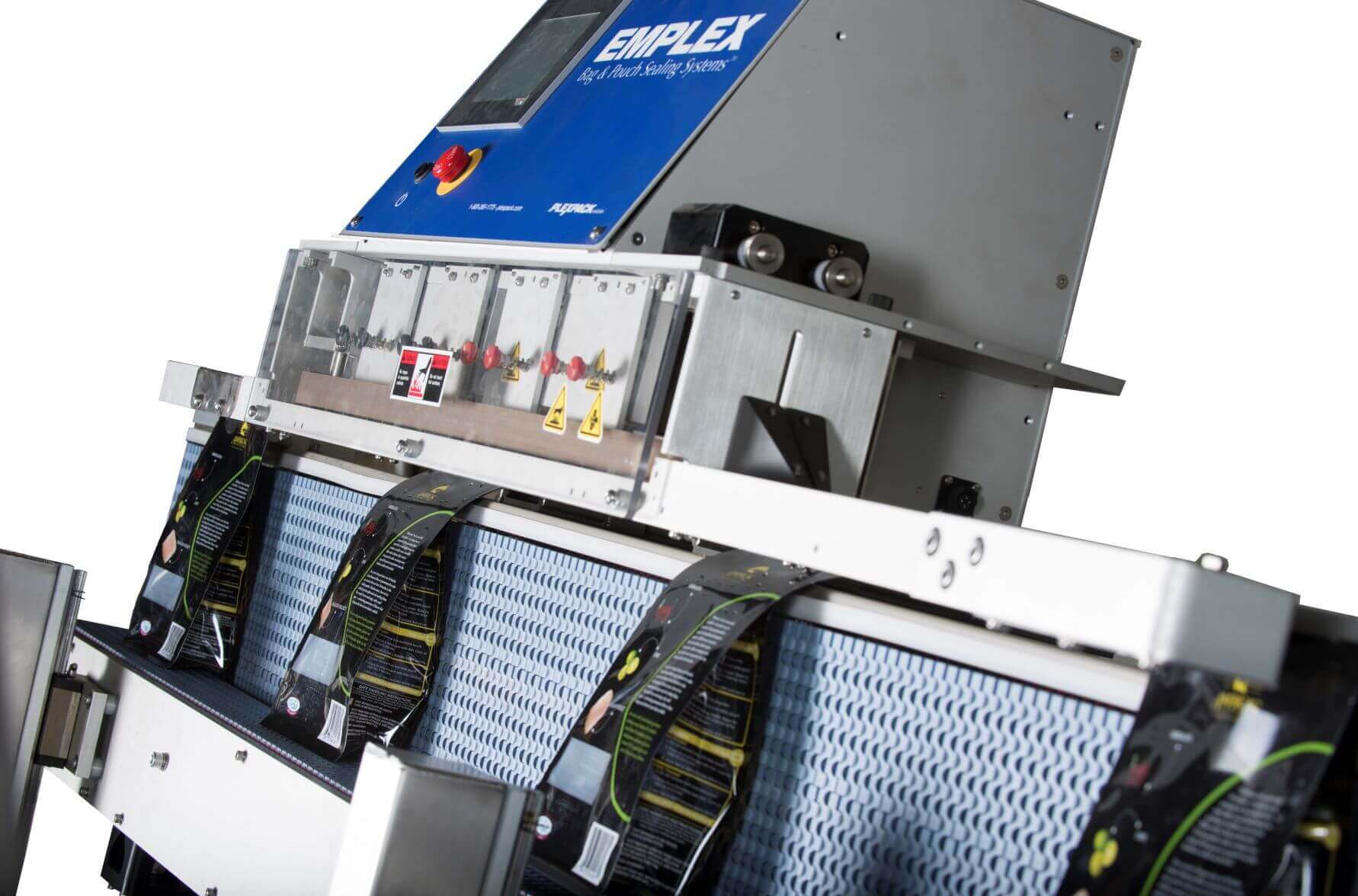

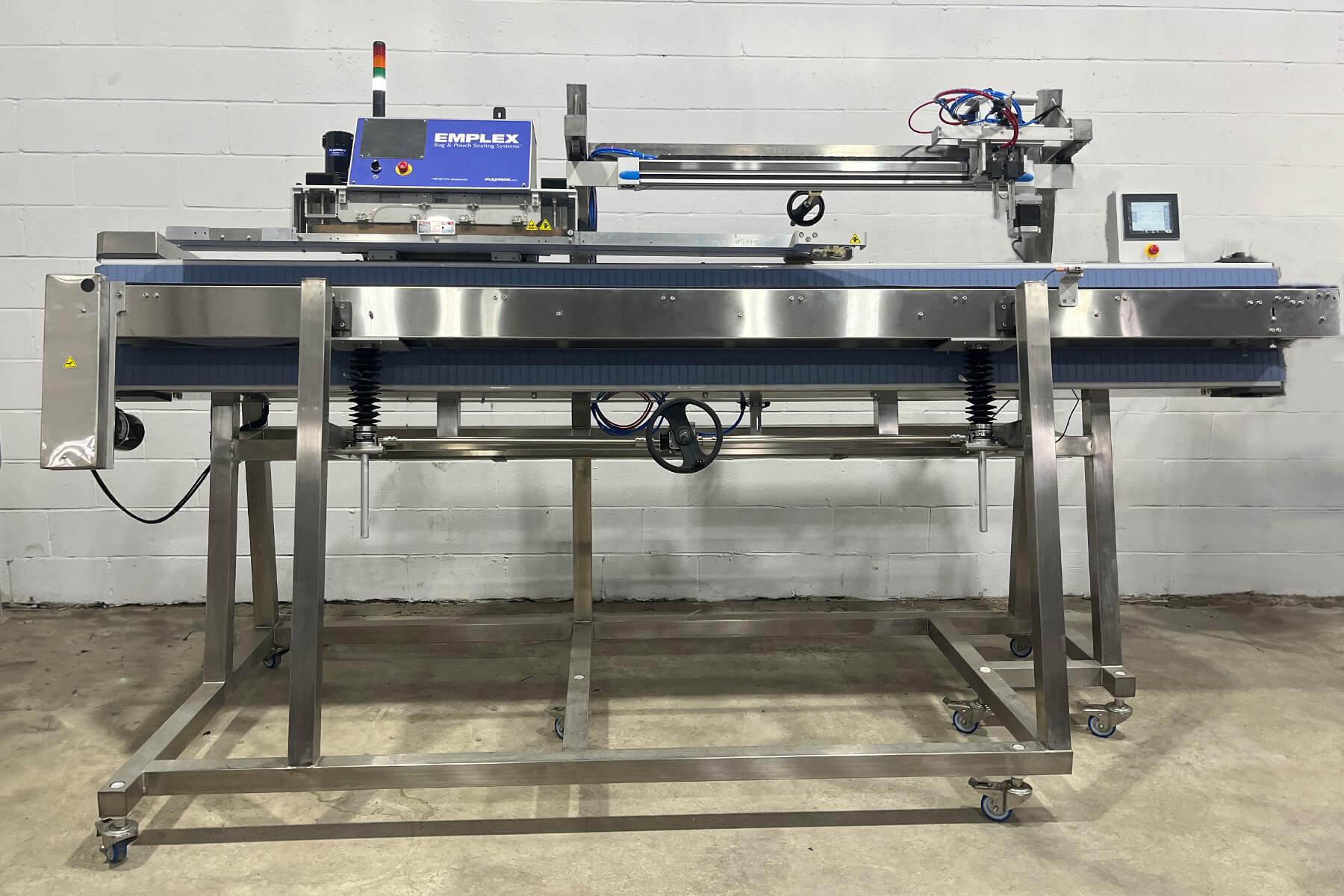

ACS7200

ACS7200

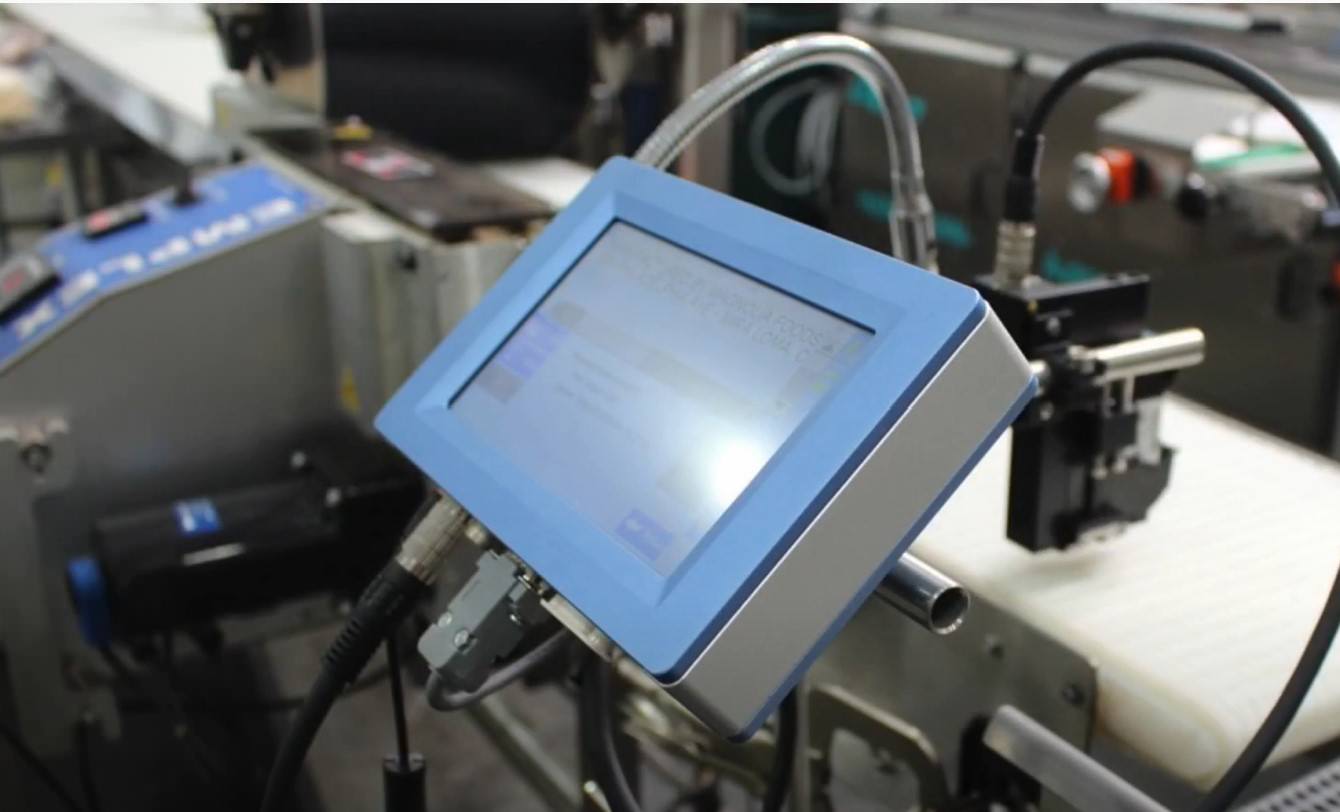

The Emplex ACS Series delivers high speed sealing for horizonal and angled product handling applications. The ACS 7200 comes with 10 inches (25.4 cm) of heat and 10 inches (25.4 cm) of cooling. Sealing processes can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. The ACS seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). Common upgrades include inkjet printers, bag top trimmers, camera systems and robotic handling.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Angled or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4”  (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)
 Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel frame and legs
Infeed Direction  Right to Left or Left to Right
 Angle Options  0 to 60 degrees
 Pressure Rollers  Stainless Steel
Electrical   120V 12A
 Motor ¼ HP PWM PMDC
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 1000” (25 m) per minute
 Temperature Range 0-232 degrees Celsius /
0-450 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Conveyor Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m)
Standard width: 12” (30.48 cm)
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning NEMA 4/4X Washdown capable

Options
 Stainless Sealer Band
 Rubberized Pressure Roller
4” (10.6 cm) throat depth
 Vacuum/Gas Flush
Specialized and Custom conveyors

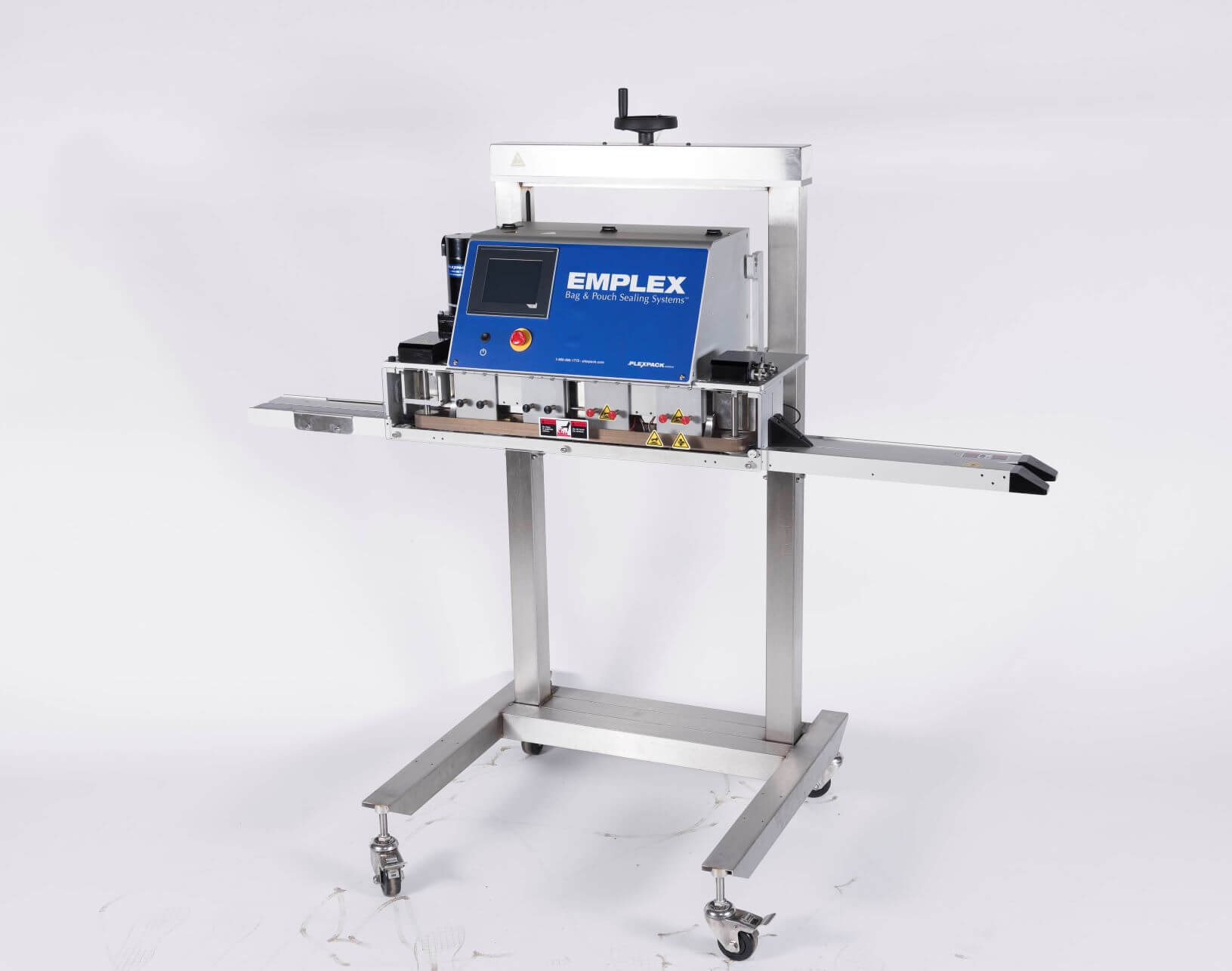

MPS7100 continous band sealer

MPS7100 continuous band sealer

MPS7100 NEMA-rated bag sealers deliver high-speed sealing and come with your choice of NEMA 4 or NEMA 4X-rated components and electrical protection. The MPS7100 hermetically seals bags and pouches at speeds up to 800 inches (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The MPS7100 seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150-micron maximum when gusseted). The NEMA-rated 5.7 inch colour touchscreen controller simplifies operation and package customization.

 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75" (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  204 Stainless Steel Frame LEgs
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
Seal Band   Easy-access, tool less changeover
 Cleaning Standard cleaning and wipe down
Options
 Stainless Steel Sealer Band
 Extended Height Stands
4”(10.16 cm) additional throat depth
Washdown Nema 4 or Nema 4x
Custom Conveyor widths and lengths

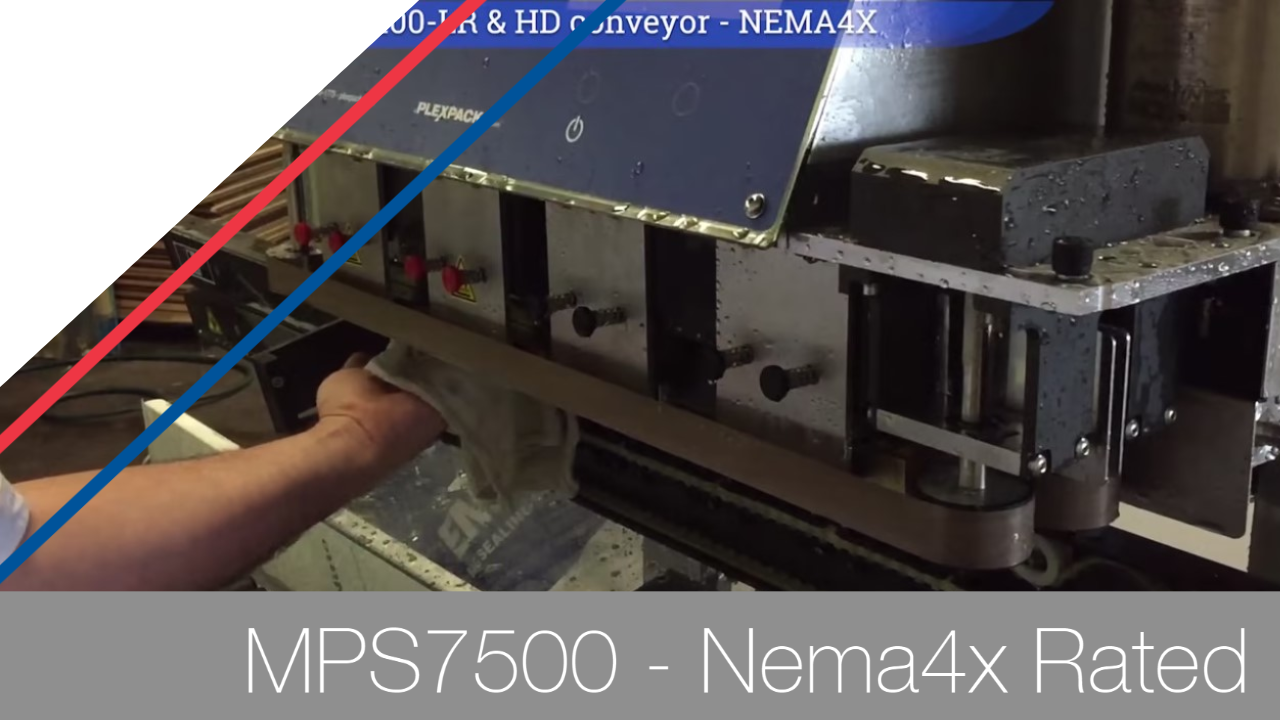

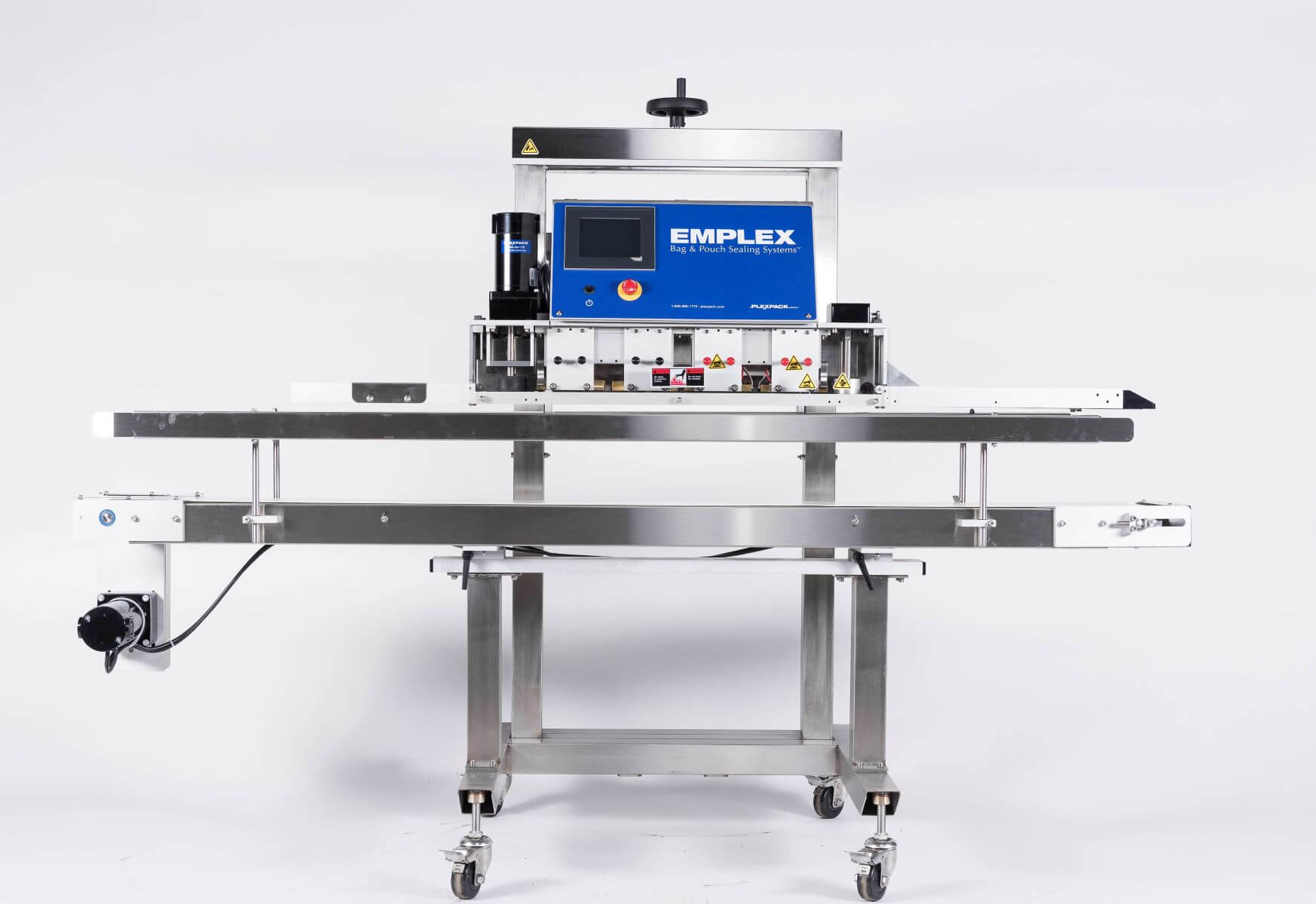

MPS7500

MPS7500

MPS7500 NEMA-rated bag sealers deliver high speed sealing and come with your choice of NEMA 4 or NEMA 4X-rated components and electrical protection. The MPS7500 hermetically seals bags and pouches at speeds up to 800" (20.32 m) per minute and can be configured for manual, semiautomatic, or automatic loading. The MPS 7500 seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). The NEMA-rated 5.7 inch color touchscreen controller simplifies operation and package customization.



 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75" (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame Legs
Conveyor Food Grade 6" x 6 ft (15.2 cm x 182.9 cm) SS
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
Seal Band   Easy-access, tool less changeover
 Cleaning Standard cleaning and wipe down
Options
 Stainless Steel Sealer Band
 Extended Height Stands
4”(10.16 cm) additional throat depth
Washdown Nema 4 or Nema 4x
Custom Conveyor widths and lengths
