Vacuum & Gas Flush Sealers | Modified Atmosphere Packs

Emplex™ Vacuum & Gas Flush Sealing

High-Speed Bagging For Freshness

Emplex™ VGF Series of continuous band vacuum and gas flush vacuum sealer set the standard for high speed bagging of food, medical, pharmaceutical and electronics applications that require optimum freshness and shelf life.

Get A Quote  Call Us Today

Vacuum & Gas Flush Sealers | Modified Atmosphere Packs

Vacuum & Gas Flush Sealer Machines

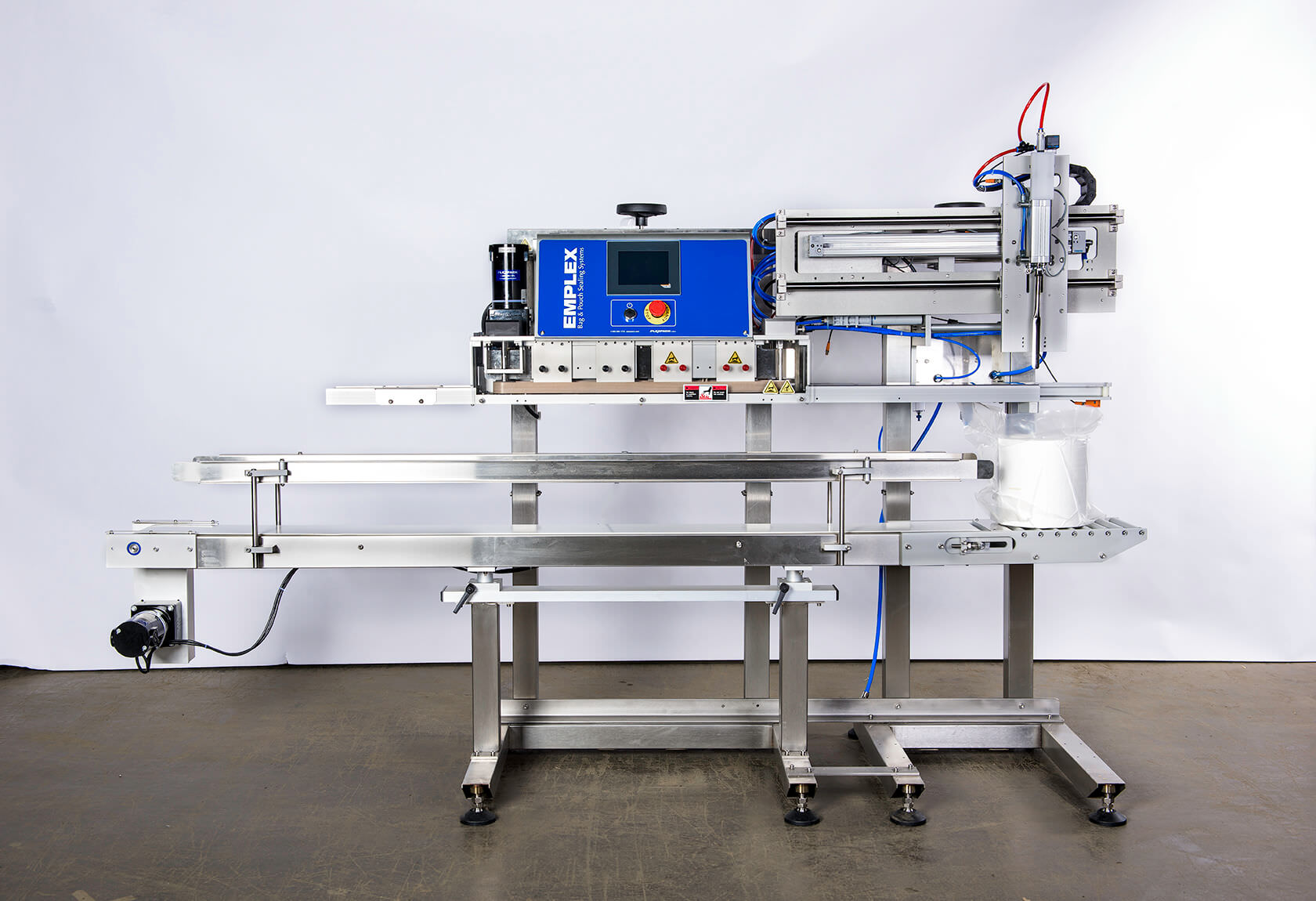

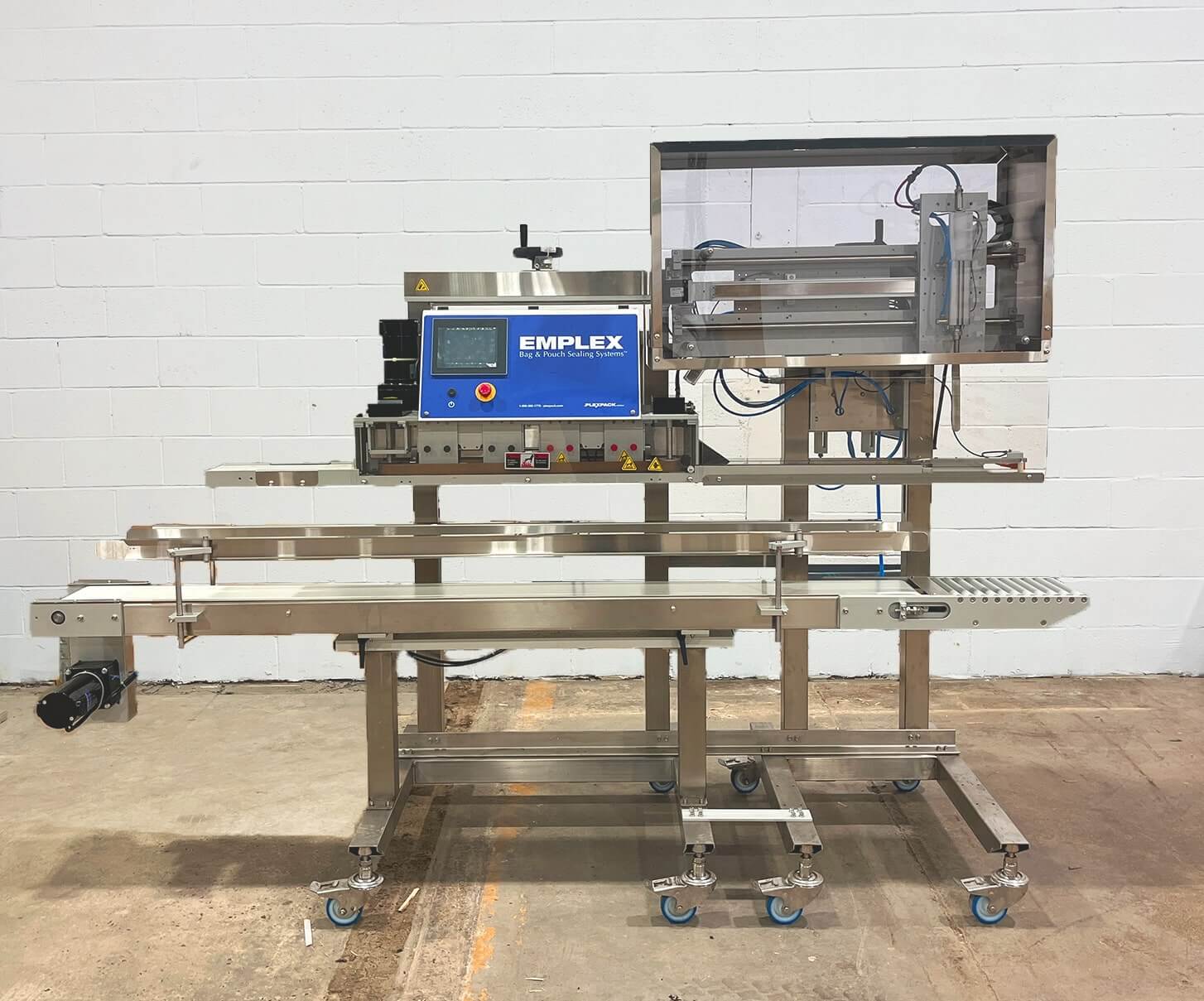

MPS7503

MPS7503

The MPS7503 is built with a vacuum/gas flush system that works in conjunction with our MPS7000 series continuous band sealers. These machines create modified atmosphere packages to lock in quality and extend shelf life. The MPS7503 hermetically seal bags and pouches at speeds up to 800" (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing prcess can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag.  It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).

Brochure Vacuum Gas Flush Sealers
Video MPS7503 Bag in Box
 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 3.5" (88 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame and Legs
Conveyor Food Grade 6" x 6 ft (15.2 cm x 182.9 cm) SS
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller

Programmable 5.7” Color Touchscreen.
Single-Point Setting for Speed, Temperature, and Pressure.
Recipe Management.
Production and User Activity Reporting and Management Tools.
Multi-Language Preference Settings.
Diagnostics and Background Monitoring of Key Processes and Components Maintenance Alerts.
Pictorial Maintenance Guides and Instructional Tutorials.



 Maintenance
Standard
Seal Band   Easy-access, Tool-less Changeover
 Environmental Protection (Cleaning) Standard Cleaning/Wipe Down



















Options
 Extended Height Stands
Motorized Height Adjustment
4”(10.16 cm) Additional Seal Throat Depth
Washdown NEMA 4 or NEMA 4x
Custom Conveyors
Validatable Sealing

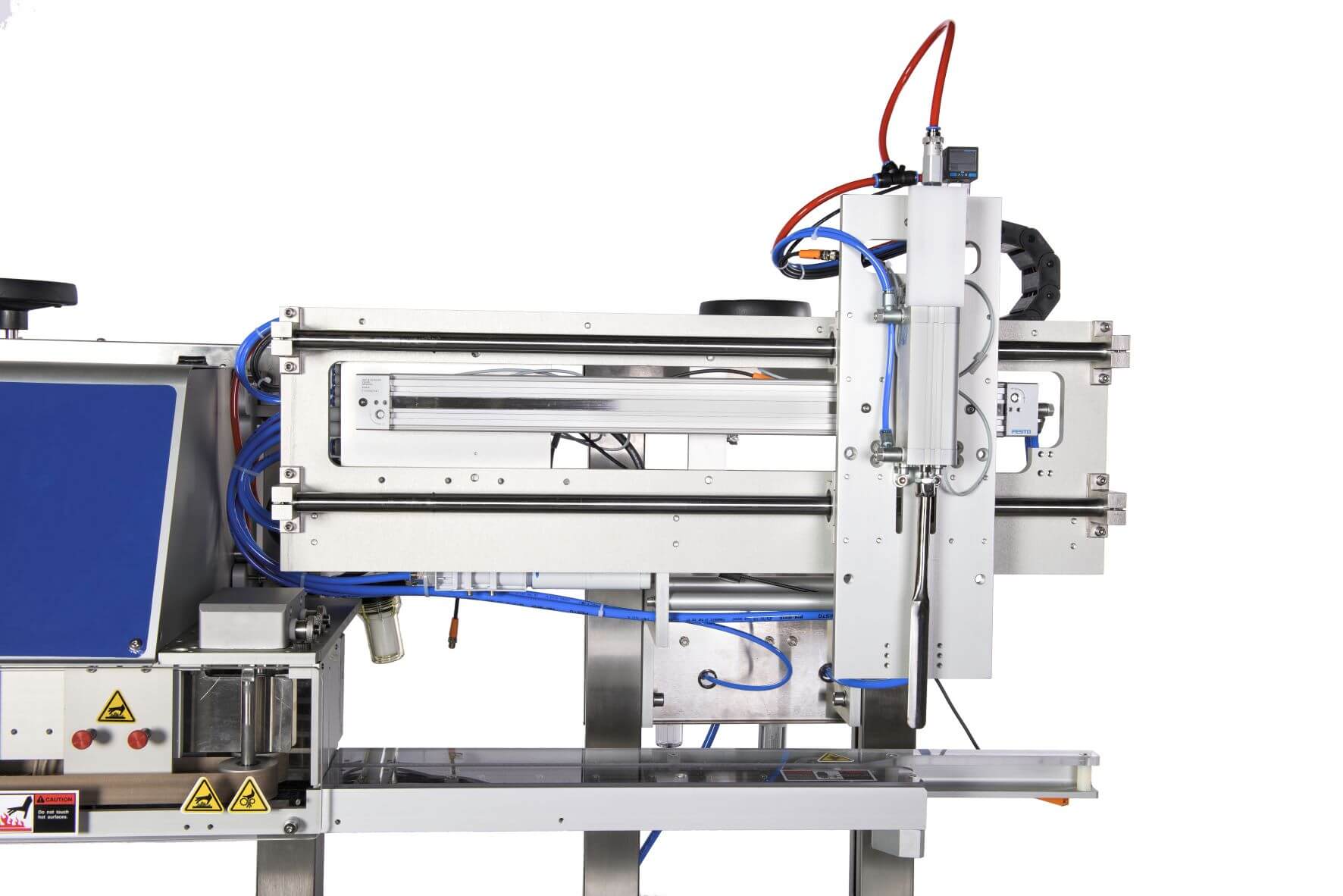

MPS7103

MPS7103

The MPS7103 is built with a vacuum/gas flush system that works in conjunction with our MPS7000 series continuous band sealers. These machines create modified atmosphere packages to lock in quality and extend shelf life. The MPS7103 hermetically seal bags and pouches at speeds up to 800" (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing prcess can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag.  It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).

Brochure Vacuum Gas Flush Sealer
Video MPS7103
 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 3.5" (88 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame LEgs
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A





 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
Seal Band   Easy-access, tool less changeover
 Cleaning Standard cleaning and wipe down























Options
 Stainless Steel Sealer Band
 Extended Height Stands
4”(10.16 cm) additional throat depth
Washdown Nema 4 or Nema 4x

















VacPack Impulse Sealer

VP

VacPack VP Series are robust, stainless steel food grade sealers that create a modified atmosphere package for a wide range of product sizes, including extra wide and heavy products. VacPack sealers employ an ejector style vacuum pump and produce hermetically sealed packages on any heat sealable bag up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).

Brochure VacPack VP
Video VacPack VP Vacuum Gas Flush Coffee Bags
 Sealing Features
Standard
 Sealer Duty Impulse
 Sealer Orientation  Vertical or Horizontal (table top or floor stand)
Multi Stage Vacuum/Gas Flush Ejector Style, Stainless Steel Nozzles
 Sealing Width 1/4” (6.35 mm)
 Seal Length 24" (60.9 cm), 30" (76.2 cm) or 36" (91.4 cm)
Throat Depth 5" (12.7 cm)





 Dimensions & Construction
Standard
 Frame Construction  316L Stainless Steel
 Height Adjustment  Crank on Florr Stand Models
 Electrical 115V 15A or 230V 8A
Air Requirement 15 CFM 80 PSI





 Operations & Controller
Standard
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Cleaning Standard cleaning and wipe down
Changeover

One touch removal of vacuum/gas
flush tubes

Easy change nichrome

Easy change Teflon covers











Options
Additional Nozzles
Extended Seal Length
Washdown Nema 4 or Nema 4x
Product Shelf
Washdown









VacPack Impulse Sealer

VS

Plexpack’s VacPack VS1 is a robust, impulse sealer that produces hermetically sealed packages on any heat sealable bag up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). VS1 sealers provide multistage vacuum and gas flash for softer vacuums and lower residual oxygen levels. The standard model employs two 316L grade stainless steel ejector style vacuum pumps for strong gas and vacuum flows.

Brochure VacPack VS
Video VacPack VS Vacuum Gas Flush Snack Bags
 Sealing Features
Standard
 Sealer Duty Impulse
 Sealer Orientation Horizontal (table top)
Multi Stage Vacuum/Gas Flush Ejector Style, Stainless Steel Nozzles
 Sealing Width 1/4” (6.35 mm)
 Seal Length 20" (50.8 cm), 25" (63.5 cm) or 30" (76.2 cm)
Throat Depth 5" (12.7 cm)



 Dimensions & Construction
Standard
 Frame Construction  316L Stainless Steel
 Electrical 120V 12A or 220V 6A
Air Requirement 15 CFM 80 PSI





 Operations & Controller
Standard
 Controller 4.3” Color Touchscreen Controller on
adjustable angled base.
• Recipe management and selection
for different materials and products.







 Maintenance
Standard
 Cleaning Standard cleaning and wipe down
Changeover

One touch removal of vacuum/gas
flush tubes

Easy change nichrome

Easy change Teflon covers



Options
Additional Nozzles
Extended Seal Length
Washdown Nema 4 or Nema 4x
Product Shelf
Floor stand with adjustable angle











What Are

Vacuum And Gas Flush Bag Sealers

Vacuum and gas flush bag sealers are advanced heat sealers engineered to significantly extend the shelf life and preserve the quality of food products and other sensitive items through controlled atmosphere packaging. These sophisticated sealing systems combine vacuum capability with a gas flush mechanism to create optimal packaging environments.

Vacuum sealing involves a powerful vacuum system and vacuum pump that removes air from vacuum bags, mylar bags, or vacuum pouches, dramatically reducing oxygen levels. This process prevents spoilage, freezer burn, and oxidation, making it ideal for food vacuum sealer applications, sous vide preparation, and general food applications. Common types include chamber vacuum sealers and nozzle vacuum sealers, with industrial vacuum sealer machines like the VacPack™ VP series offering high production speeds and robust performance.

Complementing vacuum sealing, gas flushing introduces an inert gas, typically nitrogen, into the bag after vacuuming. This nitrogen gas flush system creates a modified atmosphere (MAP), further inhibiting spoilage and protecting delicate products from crushing. Machines featuring a gas flush capability, often called flush sealers or sealer gas flush systems, are essential for products like coffee bags where controlled oxygen levels are critical for product integrity.

These versatile vacuum sealing machines are designed with precision temperature control, adjustable seal width, and robust heating elements to ensure a strong, consistent seal on various bag materials and zipper pouch configurations. Managing process parameters and monitoring temperature range is crucial, and some advanced units feature industrial PC controllers, maintenance alerts, and comprehensive maintenance guides to ensure optimal performance and food safety across diverse packaging processes and production needs.

Get A Custom Quote

Key Benefits Of

Gas Flush Vacuum Sealing

Seal Integrity
Seal Integrity

Vacuum & Gas Flush to Extend Shelf Life

Lock in Quality & Freshness

Control
Control

Easy-Use Touchscreen

Customizable Sealing Recipes & Diagnostics

Simplicity
Simplicity

Easy to Install, Maintain and Operate

Gas Flush Vacuum Sealer In Action

Gas Flush Vacuum Sealer In Action

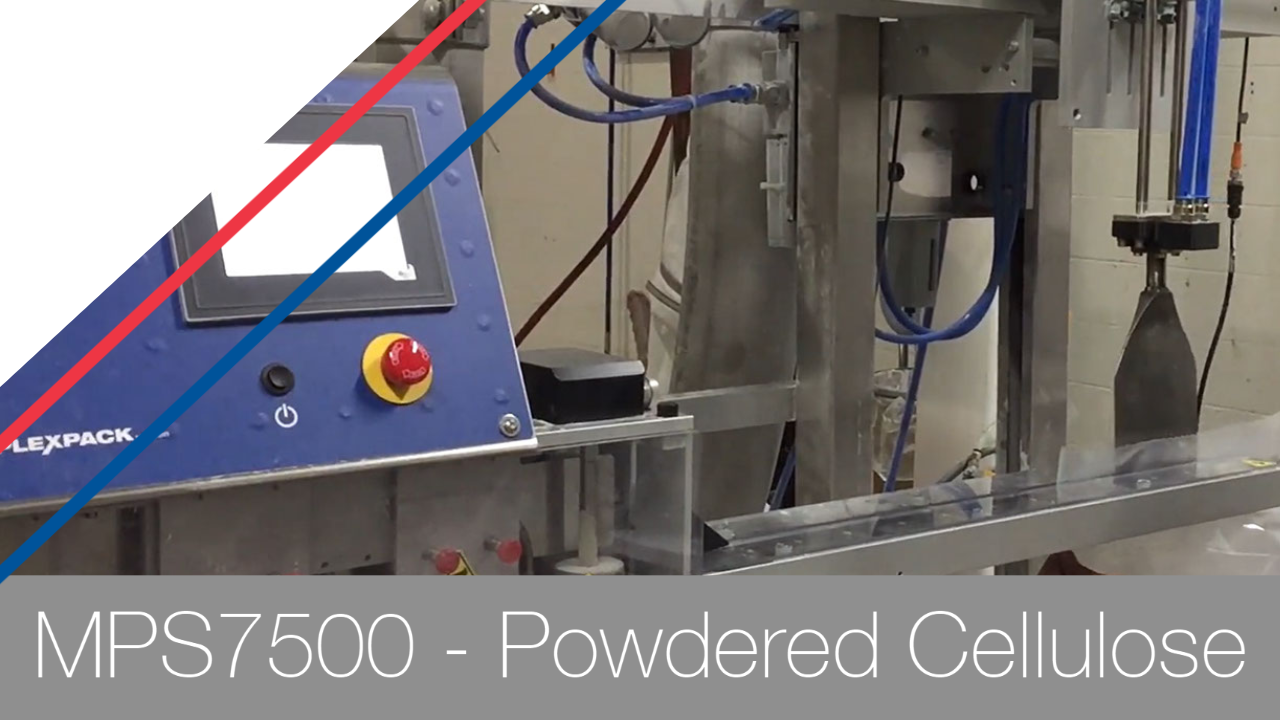

The Emplex™ MPS7500™ is a high-performance band sealer engineered for precise and hygienic packaging, making it an ideal solution for sealing challenging products such as powdered cellulose. Its robust washdown design ensures sanitary operation, while advanced process control delivers consistently strong seals, crucial for maintaining product integrity and preventing contamination for fine particulate materials.

View Other Emplex™ Solutions

Open Vimeo video

Need More From Your Packaging Solution?

We provide add-ons to our equipment such as printers, trimmers, compression belts, heavy-duty conveyors and embossers. These systems work in conjuction with our sealers to customize our sealer to your needs. Most add-ons can be added at any time to our sealers if you're looking to add to existing Plexpack equipment or in the future as your needs change.

Learn About Our Add-Ons

Open Vimeo video

What Are The Benefits of Gas Flushing?

You can take advantage of several benefits by using a gas flush vacuum sealer for medical, coffee, cannabis, or food applications.

Longer Shelf Life

A vacuum and/or nitrogen flush bag sealer removes oxygen from the inside of food packaging. Oxygen speeds up the spoiling process by providing microorganisms with a chance to grow. It also causes oxidation, which discolors food and can give it a bad odor. Flushing the oxygen out of a food package and replacing it with nitrogen means the food inside stays fresh for longer.

Replacing oxygen with nitrogen also increases product longevity by creating a cushion inside the food packaging. The air cushion keeps fragile items, such as chips or cookies, from crumbling during transport.

Food Safety

The removal of oxygen from food packaging also enhances food safety. Aerobic bacteria, molds and yeasts need oxygen to thrive. Once the source of oxygen is gone, those microorganisms can't grow as easily.

A Fresher Appearance

Oxygen exposure can discolor food. Avocadoes and apples are just two examples of fruits that brown when exposed to oxygen in the air. While the discoloration may not affect the taste of food, it's not particularly appetizing to see. Removing oxygen from packaging with a gas flush vacuum sealer can keep your food products looking appealing and tasty.

Eliminating oxygen from the packaging can also keep personal care items and cleaning products from discoloring.

Product Integrity

Medical and pharmaceutical products need to work as advertised. However, these products don't last forever, particularly when they are stored in less-than-ideal conditions. Gas flush bag sealers remove oxygen and other gases that can speed up decay and cause your products to lose effectiveness.

How To Choose The Right Equipment for Gas Flush Vacuum Sealing

When choosing a gas flush vacuum sealing machine, there are two primary factors to look for — efficiency and quality. You want to choose a machine that will speed up your packaging processes and continue to work for your company for many years to come. We have several gas flush vacuum sealer models available. Read the brochures and watch the videos for each to find the vacuum sealing machine that's right for you. Contact our team of experts if you have any questions!
