Fast, Precise Continuous Bag Sealing

Emplex standard sealers deliver outstanding performance on all heat sealable bags. All models are equipped with PLC/HMI touchscreen controls to adjust the pressure and temperature of sealing bars as well as speed. They provide plug and play capability for a wide variety of applications and are made-to-order with numerous user-selectable options and a comprehensive feature set. This makes the Emplex standard models affordable solutions for packaging operations of any size and budget.

Key Benefits

Modular
Modular

Original Modular Design

Improves Machine Longevity

Expandable & Configurable

Standard Control
Standard Control

Easy-Use Touchscreen

 Customizable Sealing Recipes & Diagnostics

Simplicity
Simplicity

Easy to Install, Maintain and Operate

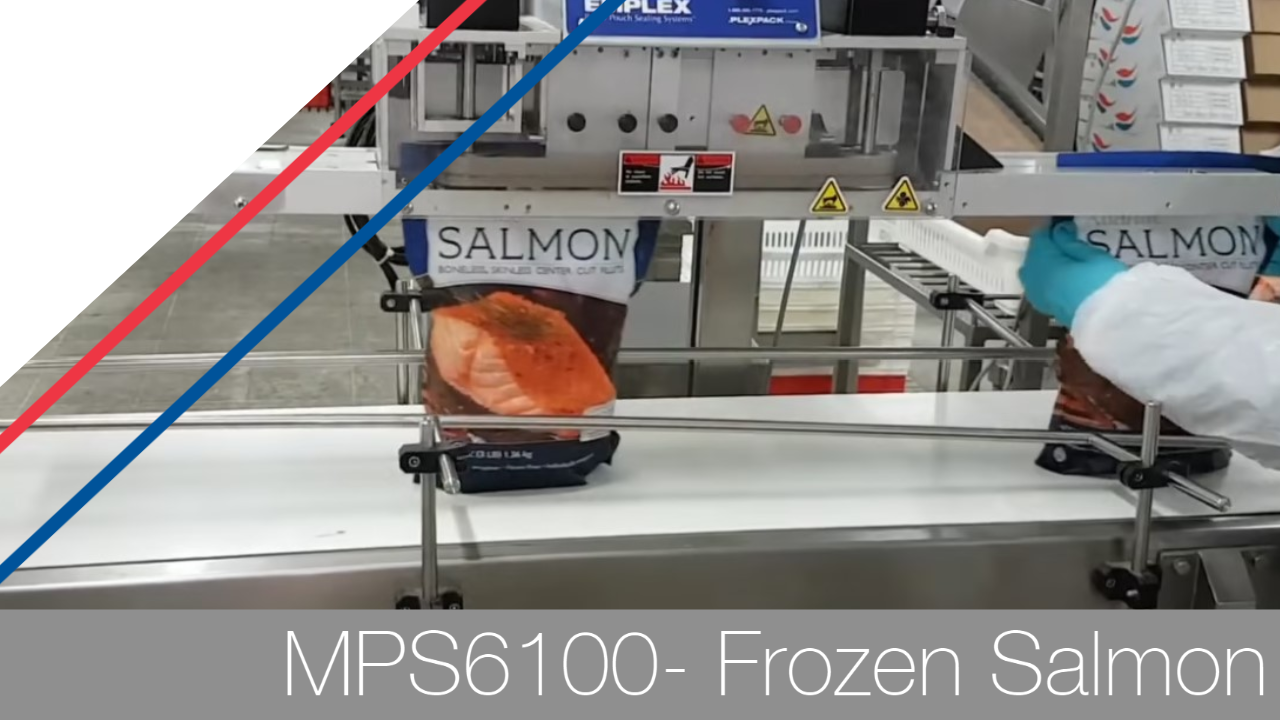

MPS 6100 Series Continuous Band Sealer

MPS 6100 Series | Continuous Band Sealer

The MPS6100 hermetically seals bags and pouches up to 2lb/907cm without a conveyor providing constant load, variable speed service. The standard features include a PLC HMI touchscreen, variable pressure sealing bar, Teflon sealing bands, and a height adjustable frame.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)
 Dimensions & Construction
Standard
 Frame Construction 304 stainless steel frame and legs
 Infeed Direction Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers Stainless Steel or Rubberized
 Electrical  110V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed Up to 800" per minute (20.32 cm per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
Heating and Cooling Capacity  5” (12.7 cm) heating bars
5” (12.7 cm) cooling bars
Controller  Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent machine
damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning Standard and wipe down
Options
Stainless Sealer Band
Extended Height Stands
4" (10.16 cm) additional throat depth
MPS6140 continuous band sealer tabletop

MPS6140 continuous band sealer tabletop

The Emplex MPS 6140 delivers precise, strong seals for customers who require high-quality bags and pouches in a compact tabletop design. The MPS 6140 is a low maintenance machine with easy access to the seal section, modular components, and standard features not typically found on tabletop sealers.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)
 Dimensions & Construction
Standard
 Frame Construction 304 stainless steel frame and legs
 Infeed Direction Right to Left or Left to Right
 Pressure Rollers Stainless Steel or Rubberized
 Electrical  110V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed Up to 300" per minute (762 cm per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
Heating and Cooling Capacity  5” (12.7 cm) heating bars
5” (12.7 cm) cooling bars
Controller  Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent machine
damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning Standard and wipe down
Options
Stainless Sealer Band
Extended Height Stands
4" (10.16 cm) additional throat depth
MPS 6500

MPS 6500

This line of bag and pouch sealers delivers fast, precise, and strong seals on bags and stand-up pouches. Both models offer true plug and play capabilities for reliable, easy-to-use performance for a variety of applications in any production environment. The MPS6500 is a low maintenance machine with easy access to the seal section and modular components for easy expandability as production needs to increase.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75" (70 mm)
 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame and Legs
 Conveyor Food Grade 6 in. x 6 ft (15.2 cm x 182.9 cm) stainless steel
 Infeed Direction Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical  120V 12A or 220V 6A

Options
 Stainless Steel Band
 Extended Height Stands
 Custom Conveyors
4" (10.16 cm) additional throat depth
 Operations & Controller
Standard
 Varaible Speed Up to 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 5” (12.7 cm) heating bars
5” (12.7 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning Standard cleaning and wipe down
MPS7100

MPS7100

The MPS 7100 hermetically seal bags and pouches at speeds up to 800 inches (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing process can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag.  It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).

 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75" (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  204 Stainless Steel Frame LEgs
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
Seal Band   Easy-access, tool less changeover
 Cleaning Standard cleaning and wipe down
Options
 Stainless Steel Sealer Band
 Extended Height Stands
4”(10.16 cm) additional throat depth
Washdown Nema 4 or Nema 4x
Custom Conveyor widths and lengths
MPS7100

MPS7500

The MPS7500 hermetically seal bags and pouches at speeds up to 800" (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing prcess can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag.  It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).

 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75" (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame Legs
Conveyor Food Grade 6" x 6 ft (15.2 cm x 182.9 cm) SS
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
Seal Band   Easy-access, tool less changeover
 Cleaning Standard cleaning and wipe down
Options
 Stainless Steel Sealer Band
 Extended Height Stands
4”(10.16 cm) additional throat depth
Washdown Nema 4 or Nema 4x
Custom Conveyor widths and lengths
