Automatic Sleeve Wrappers | High-Speed Bundling Lines

Damark™ Automatic Sleeve Wrappers

For Multipack Containers

Damark™ fully automatic shrink packaging solutions deliver cost-effective, beautifully wrapped bundles and multipacks of cartons, bags, cans, bottles, plastic containers or trays. Automatic shrink wrappers and bundlers are available with right angle infeed for unsupported products that require collation or with inline continuous feed for supported products.

Get A Quote  Call Us Today

Automatic Sleeve Wrappers | High-Speed Bundling Lines

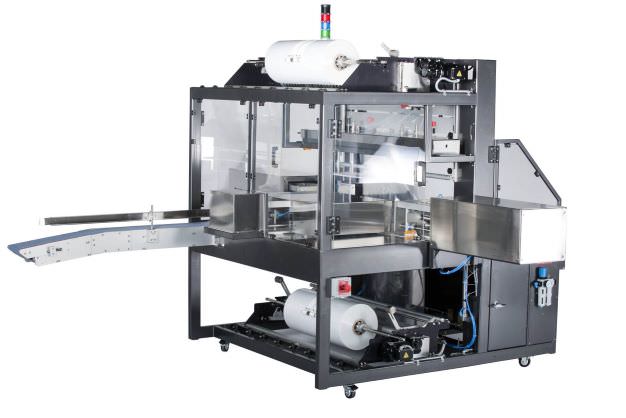

B90 automatic bundler and sleeve wrapper for uncollated products

B90

The Damark B-90 Series are fully automatic shrink bundling systems designed to shrink wrap unsupported products and products that require collation. These units have an automatic product infeed conveyor that feeds either from right or left of machine, micro switch product sensing, a pneumatic seal head, and motorized product discharge conveyors. These Damark B-90 shrink bundlers can be set up to work in one of the following three configurations:

  • Single Row Collating / 90 degree product turn: One line of product is pushed through the film at a 90 degree angle.
  • Multi-Row Collating with Product Pusher: One line of product is collated one a row at a time and then is pushed through the film at a 90 degree angle.
  • Multi-Lane Infeed Collating: One line of product is feed onto the infeed conveyor and then separated into multiple rows before it is pushed through the film at a 90 degree angle
Brochure Semi-Automatic Bundlers and Wrappers
Video Damark B34-90 Bundling Water Bottles
Dimensions & Specifications
Standard
Sealing Width 24" (60.96 cm); 34" (86.3 cm); 44" (111.76 cm)
Max Product Width 20” (50.8 cm); 30" (76.2 cm); 40" (101.6)
Max Product Height 17” (43.18 cm)
 Construction Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Guarding Lexan
Environmental Protection Nema 1



























Operations & Controller
Standard
Power Requirement   Choice of 220 V - 600 V, 3 Phase
Air Requirement 80 psi 10 CFM
Speed  Application Dependent
Infeed Right to Left or Left to Right, Collation
Control Industrial PC and 10” Color
Touchscreen
• Single-point setting for
speed, temperature, and
pressure.
• Recipe management
• Production reporting
• Multi-language
• Process diagnostics
and monitoring
• Maintenance alerts



Maintenance
Standard
 Film Changeover Large Capacity Film Rolls & Easy Thread Quick Change Film System
 Environmental Protection Nema 1














Options
Multi-Lane Infeeds
 Broken Seal Alarm
Builds for Large Products
Washdown
 Low Film Indicator

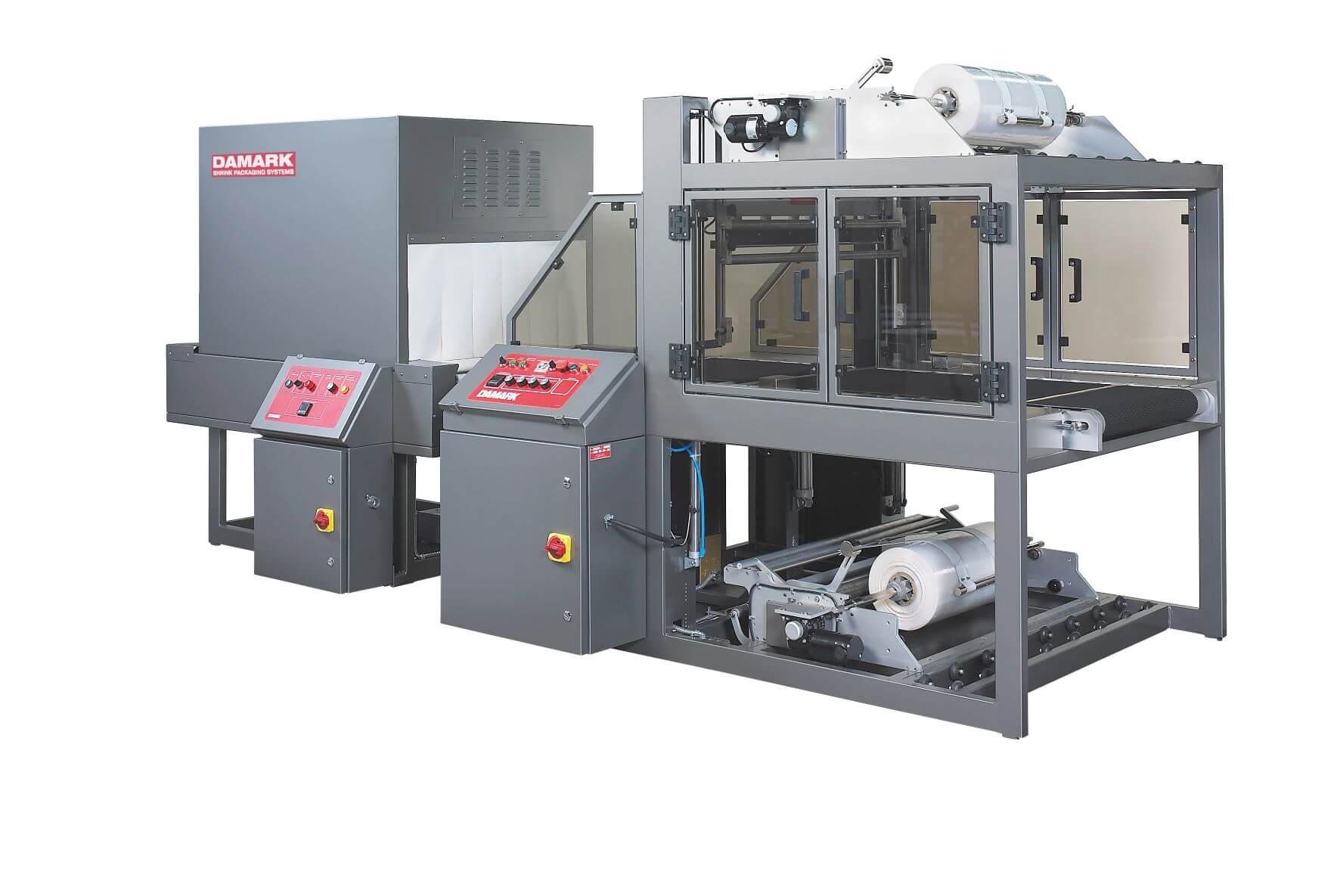

B180

B180

The Damark B-180 Series of tray wrappers and sleeve wrappers are fully automatic, in-line shrink wrap systems with roller/belt infeed conveyors, photo-cell product sensing, automatically operating pneumatic sealing heads, and motorized product discharge conveyors. They range in size from our smallest unit, which comes with a 24” wide seal head, to our largest unit, which comes with a 74” wide seal head. This range of sizes allows us to offer you the perfect size machine to suit your applications needs. All of our wrappers can be matched with our SZ & DZ Shrink Tunnels.

Brochure Semi-Automatic Bundlers and Wrappers
Video Damark B34-180 Wrapping Closet Organizers
Dimensions & Specifications
Standard
Sealing Width 24" (60.96 cm); 34" (86.3 cm); 44" (111.76 cm)
Max Product Width 20” (50.8 cm); 30" (76.2 cm); 40" (101.6)
Max Product Height 17” (43.18 cm)
 Construction Painted Steel
Machine Stand Choice of: Stainless Steel Locking Casters or Footpad
Guarding Lexan





























Operations & Controller
Standard
Power Requirement   Choice of 220 V - 600 V, 3 Phase
Air Requirement 80 psi 10 CFM
Speed  Application Dependent
Infeed Direction Inline Continuous Feed
Control Industrial PC and 10” Color
Touchscreen
• Single-point setting for
speed, temperature, and
pressure.
• Recipe management
• Production reporting
• Multi-language
• Process diagnostics
and monitoring
• Maintenance alerts



Maintenance
Standard
 Film Changeover Large Capacity Film Rolls & Easy Thread Quick Change Film System
 Environmental Protection Nema 1
















Options
Multi-Lane Infeeds
 Broken Seal Alarm
Builds for Large Products
Washdown
 Low Film Indicator



















Key Benefits Of

Sleeve & Bundle Wrappers

Control
Control

Easy-Use Touchscreen Display

Remote Diagnostics

Predictive Maintenance

Efficient
Efficient

High Speed Automated Sealing

Integrates with Your Production

Reliability
Reliability

Strong Consistent Seals

Attractive Secure Packaging

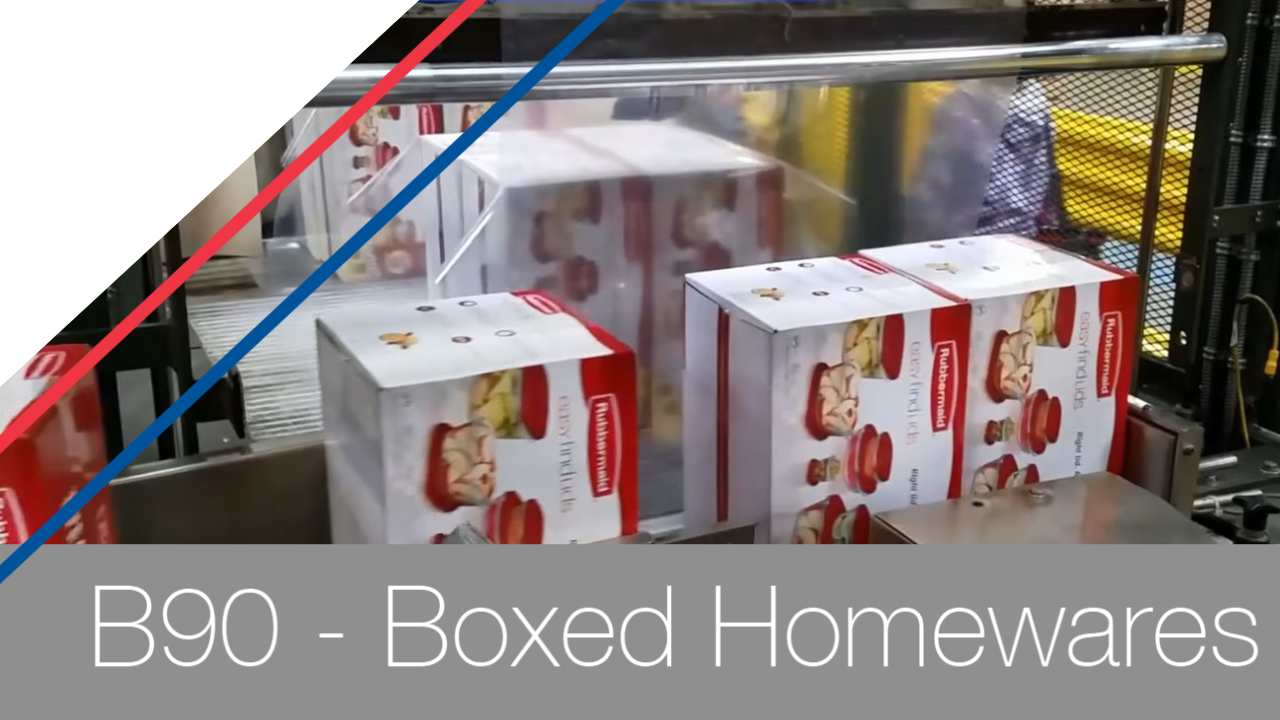

Collating & Product Bundle Wrapper

Collating & Product Bundle Wrapper

See the Emplex™ Damark B90 at work, expertly collating and sealing boxed home goods. This reliable bundle wrapper provides secure, attractive, and efficient packaging for multi-pack products, enhancing presentation and protection for a wide range of consumer items.
