Damark Full Enclosure Systems Archives - Plexpack

Flexible Full Enclosure Wrapping


Innovative Inline, Continuous Wrapping for Difficult to Wrap Product

Plexpack’s Instawrap combines the best qualities of side sealers and sleeve wrappers to deliver cost-effective, highly efficient packaging for difficult to wrap products. Instawrap delivers neat, clean seals for strong, attractive packages in less floor space than most full enclosure systems. Its innovative design delivers improved package quality, film control, product flexibility, and cost savings. Instawrap easily and efficiently wraps or bundles products of equal or variable dimensions up to any length and an incredible 300 lbs (136 kilograms).

Key Benefits

Simple Control
Simple Control

Easy-Use Touchscreen

Customizable Product Recipes

Remote Diagnostics

Thoughtful Designs
Thoughtful Designs

Fast Easy Film Loading

Standard Lexan Guarding

Rugged Stainless Steel Construction

Efficiency
Efficiency

Continuous Wrapping & Sealing

Fast Changeover



side sealer

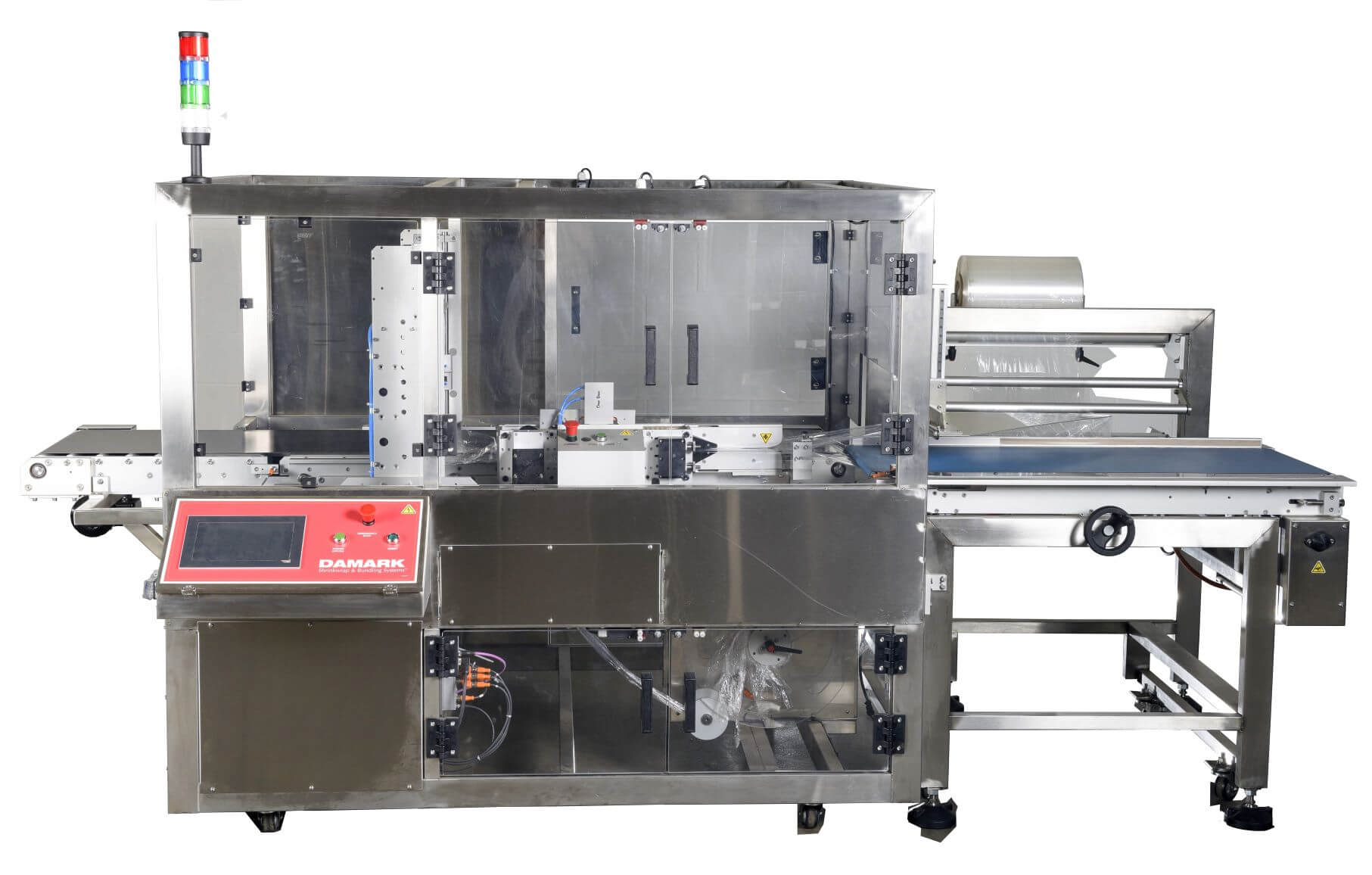

SideSealer

The Damark SideSealer uses U-fold film in applications where polyolefin and shrink LPDE are commonly used. It comes standard with stainless steel construction, food grade belting and an easy-to-use touchscreen PLC/HMI. Package speeds of 50 per minute are possible, depending on the application. Conveyors, modeled after Plexpack sleeve wrappers, provide improved transition and handling of long or heavy products and contribute to the compact footprint.  Products can be randomly spaced during handling, wrapping, and sealing for packaging loose items, samples, line cards, or unique applications.

Construction & Specifications
Standard
Max Product Width 33" (83.82 cm)
Max Product Length 44" (111.76 cm)
Max Product Height 12" (30.48 cm)
Max Product Weight 30 lbs
 Construction Stainless Steel
Guarding Lexan
Perforator Roller Standard
Conveyor Aluminium or Stainless Steel
Film Clamps Standard



Operations & Controller
Standard
Power Requirement   220 V 6A
Air Requirement 80 psi 15CFM
Speed  Up to 800" per minute (20.32 m)
Film Any heatseable U-Fold film
Sealing Head Continuous Motion & Single Side Sealer Head
Control Industrial PC and 10” Color
Touchscreen
• Single-point setting for
speed, temperature, and
pressure.
• Recipe management
• Production reporting
• Multi-language
• Process diagnostics
and monitoring
• Maintenance alerts



Maintenance
Standard
 Film Changeover Large Capacity Film Rolls & Easy Thread Quick Change Film System

Options
Custom Conveyors
Shrink Tunnels
Foil, Laminates, Paper/Poly (Hermetic Seals)
instawrap

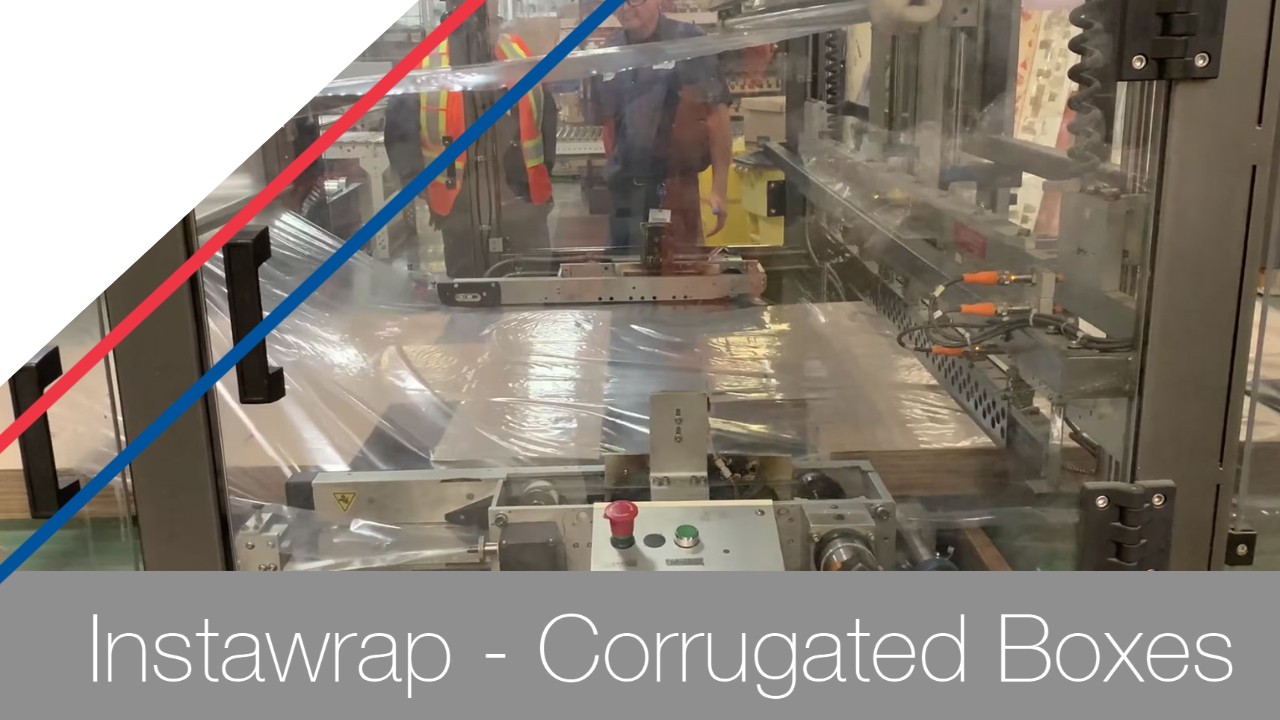

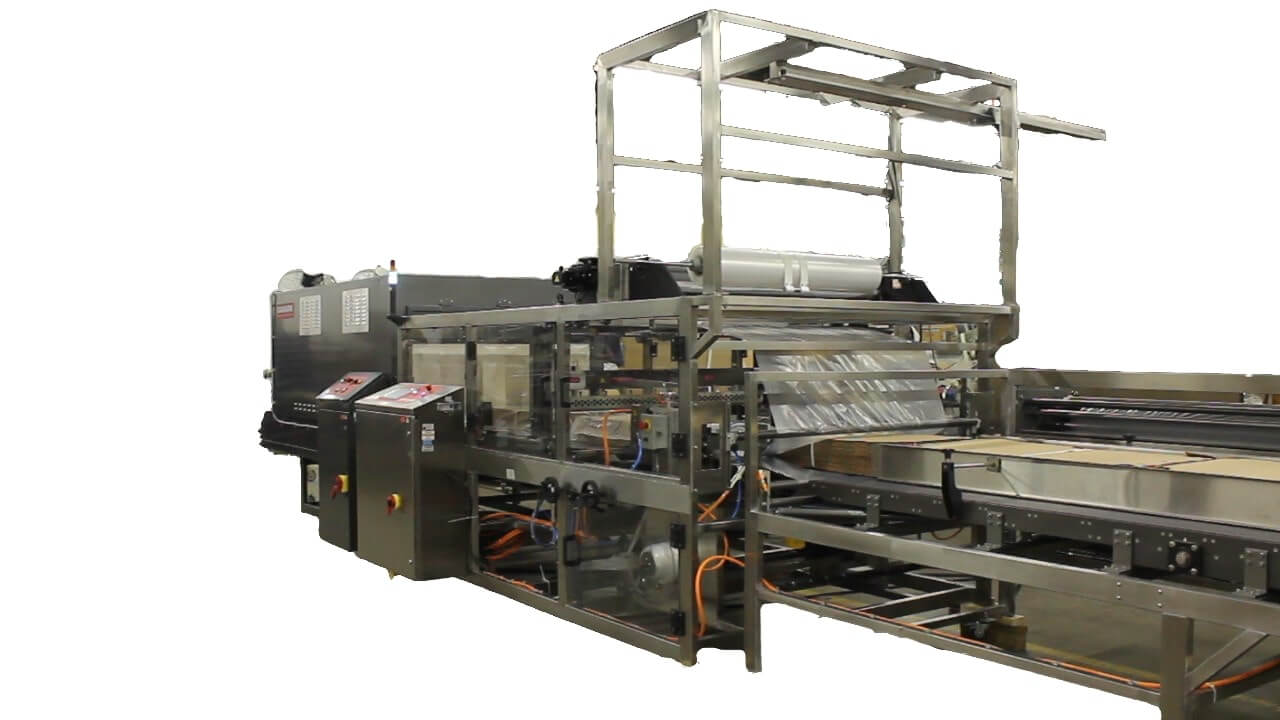

Instawrap

The Damark Instawrap uses flat film in applications where polyolefin and shrink LPDE are commonly used. It comes standard with stainless steel construction, food grade belting and an easy-to-use touchscreen PLC/HMI. Package speeds of 20 per minute are possible, depending on the application. Conveyors, modeled after Plexpack sleeve wrappers, provide improved transition and handling of long or heavy products and contribute to the compact footprint.  Products can be randomly spaced during handling, wrapping, and sealing for packaging loose items, samples, line cards, or unique applications.

Construction & Specifications
Standard
Max Product Width 52" (132.08 cm)
Max Product Length 44" (111.76 cm)
Max Product Height 8" (20.32 cm)
Max Product Weight 80 lbs
 Construction Stainless Steel
Guarding Lexan
Perforator Rollers Standard
Conveyor Link Style, Stainless Steel Construction
Film Clamps Standard



Operations & Controller
Standard
Power Requirement   220 V 6A
Air Requirement 80 psi 15CFM
Speed  Up to 600" per minute (15.24 m)
Film Any heatseable film
Sealing Head Continuous Motion & Dual Side Sealer Heads
Control Industrial PC and 10” Color
Touchscreen
• Single-point setting for
speed, temperature, and
pressure.
• Recipe management
• Production reporting
• Multi-language
• Process diagnostics
and monitoring
• Maintenance alerts



Maintenance
Standard
 Film Changeover Large Capacity Film Rolls & Easy Thread Quick Change Film System

Options
Custom Conveyors
Shrink Tunnels
Foil, Laminates, Paper/Poly (Hermetic Seals)
Centering Device
