Plexpack / Solutions / By Need / Tabletop Bag Sealers

Tabletop Bagging Machine

Small Seal Design | Big Value.

High Performance in a Compact Design.

The Emplex tabletop bag sealer deliver precise, strong seals for customers who require high quality bags and pouches in a compact tabletop design. These machines are designed to be low maintenance solutions with easy access to the seal section, modular components and standard features not typically found on tabletop sealers.

Tabletop Bagging Machine

Key Benefits

Small footprint
Small footprint

Modular Design
Modular Design

Plug & play
Plug & play

Validatable Tabletop Sealers

Validatable Tabletop Sealers
MPS6140 continuous band sealer tabletop

MPS6140

The Emplex MPS 6140 delivers precise, strong seals for customers who require high-quality bags and pouches in a compact tabletop design. The MPS 6140 is a low maintenance machine with easy access to the seal section, modular components, and standard features not typically found on tabletop sealers.

Brochure Emplex MPS6140
Video MPS6140 conveyor to product shelf
 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 3.5” (88 mm)



 Dimensions & Construction
Standard
 Frame Construction 304 stainless steel frame and legs
 Infeed Direction Right to Left or Left to Right
 Pressure Rollers Stainless Steel or Rubberized
 Electrical  110V 12A or 220V 6A





 Operations & Controller
Standard
 Variable Speed Up to 300" per minute (762 cm per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
Heating and Cooling Capacity  5” (12.7 cm) heating bars
5” (12.7 cm) cooling bars
Controller  Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent machine
damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning Standard and wipe down























Options
Stainless Sealer Band
Extended Height Stands
4" (10.16 cm) additional throat depth

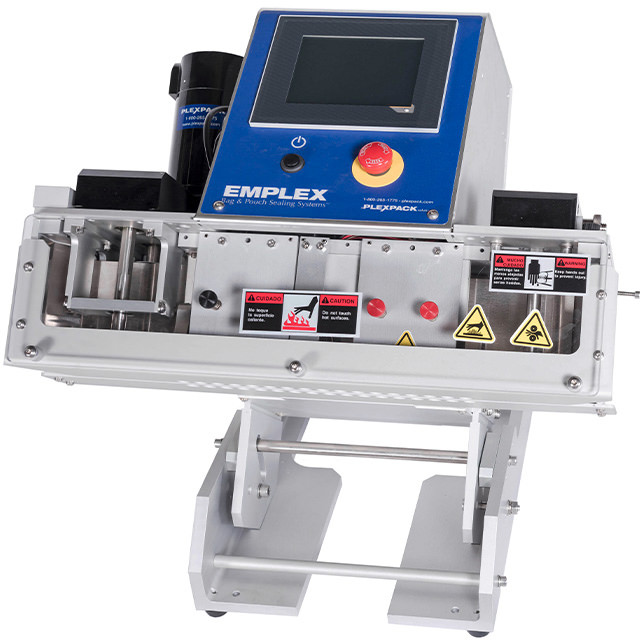

MPS6340 tabletop validatable bag and pouch sealer

MPS6340

The Emplex MPS6340 delivers validatable seals for customers who require high quality bags and pouches in a compact tabletop design. The MPS6340 is a low maintenance machine with standard features not typically found on tabletop sealers. The MPS6340 hermetically seals bags and pouches up to 8 oz. (227 gm), depending on bag width and thickness. The sealing head is adjustable for optimum packaging efficiency. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display.



Brochure Emplex MPS 6300-6700-Ver.03.21
Video MPS 6340 | Validatable Table Top Bag Sealer
 Sealing Feautres
Standard
Sealer Duty   Continuous
 Selaer Orientation  Vertical
 Sealer Band  Teflon
 Sealing Wdith Choice of: 1/8” / 3.2 mm,
1/4” / 6.35 mm, 3/8” / 9.5 mm,
1/2” 12.7 mm, 3/4” /19.05 mm
 Seal Throat Depth 3.5" (88 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel frame
 Infeed Direction  Right to Left or Left to Right
 Sealer Adjustment 0, 45 or 90 degrees
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical  120V 12A or 220V 6A
 Motor 1/4HP PWM PMDC
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 300” /7.62 m per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Seal Band Easy-access, tool-less changeover
Cleaning Standard cleaning and wipe down
















Options
 Stainless Sealer Band
 Horizontal Product Shelf
4”/ 10.16 cm additional throat depth











Need More From Your Packaging Solution?

We provide add-ons to our equipment such as printers, trimmers, compression belts, heavy-duty conveyors and embossers. These systems work in conjuction with our sealers to customize our sealer to your needs. Most add-ons can be added at any time to our sealers if you're looking to add to existing Plexpack equipment or in the future as your needs change.

Learn About Our Add-Ons
