Plexpack / Solutions / By Need / Semi-Automatic Bag Sealers

Semi-Automatic Bag Sealers | High-Speed Efficiency

Emplex™ Semi-Automatic Bag Sealers

High-Speed & High-Value

Our semi-automatic series of continuous bag sealers are designed for operations that require high levels of efficiency. Offering the same benefits and designs of our classic tried and true equipment, with performance-enhancing upgrades.

Get A Quote  Call Us Today

Semi-Automatic Bag Sealers | High-Speed Efficiency

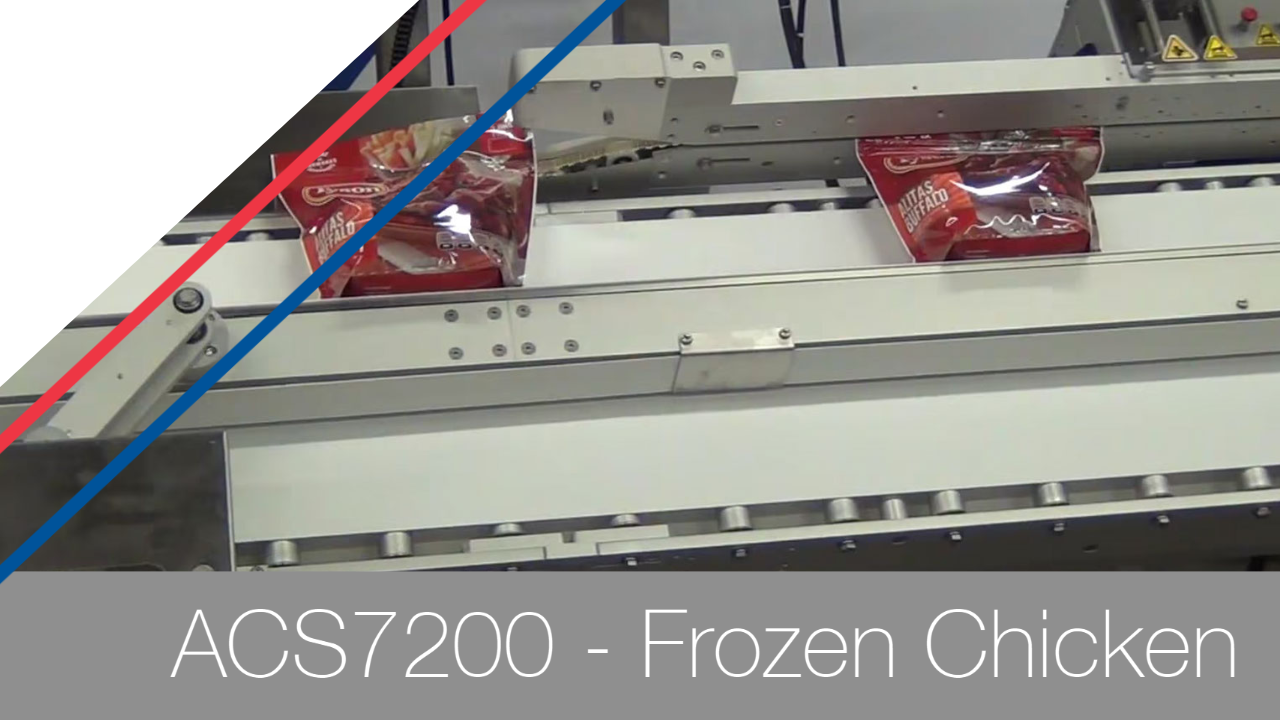

ACS7200

ACS7200

The Emplex ACS Series delivers high speed sealing for horizonal and angled product handling applications. The ACS 7200 comes with 10 inches (25.4 cm) of heat and 10 inches (25.4 cm) of cooling. Sealing processes can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. The ACS seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). Common upgrades include inkjet printers, bag top trimmers, camera systems and robotic handling.

Brochure ACS Series
Video Emplex ACS7200
 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Angled or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4”  (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)



 Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel Frame and Legs
Infeed Direction  Right to Left or Left to Right
 Angle Options  0 to 60 degrees
 Pressure Rollers  Stainless Steel or Rubberized
Electrical   120V 12A or 220V 6A
 Motor ¼ HP PWM PMDC
 SPL 60 DB
 Operations & Controller
Standard
 Variable Speed Up to 1000” (25 m) per minute
 Temperature Range 0-232 degrees Celsius /
0-450 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Conveyor Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m)
Standard width: 12” (30.48 cm)
 Controller

Programmable 5.7” Color Touchscreen.
Single-Point Setting for Speed, Temperature, and Pressure.
Recipe Management.
Production and User Activity Reporting and Management Tools.
Multi-Language Preference Settings.
Diagnostics and Background Monitoring of Key Processes and Components Maintenance Alerts.
Pictorial Maintenance Guides and Instructional Tutorials.



 Maintenance
Standard
 Seal Band  Easy-access, Tool-less Changeover
Environmental Protection (Cleaning) NEMA 4/4X Washdown Standard




























Options
Motorized Height Adjustment
4” (10.6 cm) Additional Seal Throat Depth
Validatable Sealing
 Vacuum Gas Flush
Specialized and Custom conveyors











ACS6200

ACS6200

The Emplex ACS Series delivers high speed sealing for horizonal and angled product handling applications. The ACS6200 comes with 5 inches (12.7 cm) of heat and 5 inches (12.7 cm) of cooling. Sealing processes can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. The ACS seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). Common upgrades include inkjet printers, bag top trimmers, camera systems and robotic handling.

Brochure ACS Series
Video Emplex ACS6200
 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Angled or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4”  (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)



 Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel Frame and Legs
Infeed Direction  Right to Left or Left to Right
 Angle Options  0 to 60 degrees
 Pressure Rollers  Stainless Steel or Rubberized
Electrical   120V 12A or 220V 6A
 Motor ¼ HP PWM PMDC
 SPL 60 DB
 Operations & Controller
Standard
 Variable Speed Up to 500” (12.7 m) per minute
 Temperature Range 0-232 degrees Celsius /
0-450 degrees Fahrenheit
 Heating and Cooling Capacity 5” (12.7 cm) heating bars
5” (12.7 cm) cooling bars
 Conveyor Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m)
Standard width: 12” (30.48 cm)
 Controller

Programmable 5.7” Color Touchscreen.
Single-Point Setting for Speed, Temperature, and Pressure.
Recipe Management.
Production and User Activity Reporting and Management Tools.
Multi-Language Preference Settings.
Diagnostics and Background Monitoring of Key Processes and Components Maintenance Alerts.
Pictorial Maintenance Guides and Instructional Tutorials.



 Maintenance
Standard
 Seal Band  Easy-access, Tool-less Changeover
 Environmental Protection (Cleaning) NEMA 4/4X Washdown Standard






























Options
Motorized Height Adjustment
4” (10.6 cm) Additional Seal Throat Depth
Validatable Sealing
 Vacuum Gas Flush
Custom Conveyors

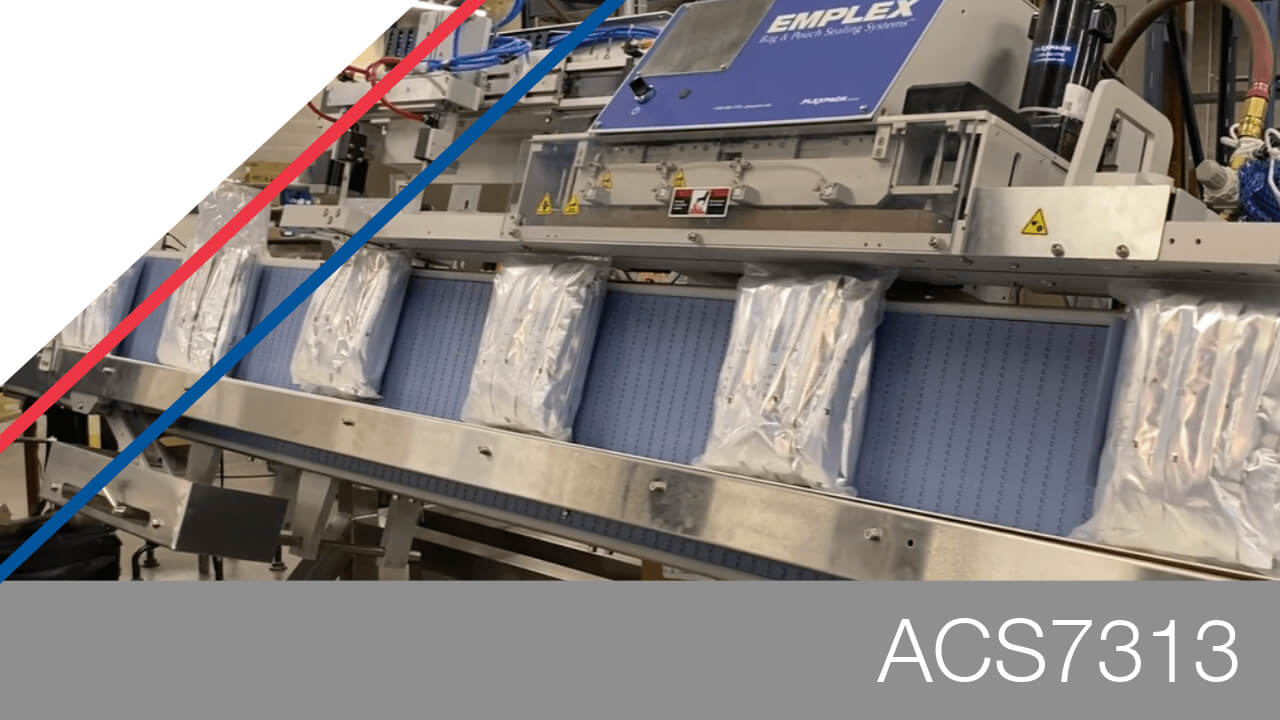

ACS7313

ACS7313

Emplex's large format semi-automated vacuum and gas flush, bag top tensioning sealer is the ideal solution for stand up pouches. This semi or fully automatable system delivers high-speed, reliable seals for strong, secure packaging for a variety of pack sizes and can scale for use in bag-in-box applications when paired with an upgraded conveyor. Equipped with an industrial-grade PLC/HMI controller, it ensures intuitive operation and simplified maintenance.

Brochure Automated Sealers
Video Emplex ACS7313 Sealing Bundles of Medical Kits
 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Angled or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4”  (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)



 Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel Frame and Legs
Infeed Direction  Right to Left or Left to Right
 Angle Options  0 to 60 degrees
 Pressure Rollers  Stainless Steel or Rubberized
Electrical   220V 6A
 Motor ¼ HP PWM PMDC
 SPL 60 DB
 Operations & Controller
Standard
 Variable Speed Up To 1000" (25 m) per minute
 Temperature Range 0-232 degrees Celsius /
0-450 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Conveyor Food/Medical Grade.
Length Choices: 6‘ (1.83 m), 9’ (2.74 m), 12’ (3.66 m) 15’ (4.57 m). Width: 12” (30.48 cm)
 Controller

Programmable 5.7” Color Touchscreen.
Single-Point Setting for Speed, Temperature, and Pressure.
Recipe Management.
Production and User Activity Reporting and Management Tools.
Multi-Language Preference Settings.
Diagnostics and Background Monitoring of Key Processes and Components Maintenance Alerts.
Pictorial Maintenance Guides and Instructional Tutorials.



 Maintenance
Standard
 Seal Band  Easy-access, Tool-less Changeover
 Environmental Protection (Cleaning) NEMA 4/4x Washdown Standard


























Options
Motorized Height Adjustment
4” (10.6 cm) Additional Seal Throat Depth
Vaccuum Gas Flush
Custom Conveyors











What Are

Semi-Automatic Bag Sealers

Semi-automatic bag sealers are engineered to streamline the bag sealing process while offering greater control and flexibility than fully automatic systems. These advanced heat sealing machines are designed to accommodate a diverse range of bag types, from poly bags and laminated structures to more specialized stand-up pouches and even paper bags, making them ideal for varying production environments.

Semi-automatic sealers require an operator to position the bag, after which the machine takes over to complete the sealing cycle. This method ensures consistent seal quality and integrity, often featuring precise seal length and seal width. Many models come equipped with sophisticated temperature controls, allowing for optimal heat sealing across a broad spectrum of material thickness, thereby enhancing product shelf life.

Plexpack’s range of semi-automatic Emplex™ bag sealing equipment is renowned for its robust construction and exceptional equipment performance. Our sealing machines offer features like user-friendly control panels and the ability to integrate optional accessories such as an ink jet printer for coding product information directly onto the bag. They are designed to improve production rates for businesses that need reliable bag closing solutions without the full investment in a completely automated packaging line. Whether you're dealing with delicate bakery products, pet food, or industrial components, our Emplex™ solutions deliver dependable bag sealing with ease. We offer various models to handle different bag sizes and can help you determine the best fit for your specific packaging needs. Visit our product guides or request a quote call to learn more about how Emplex™ can elevate your packaging operations.



Get A Custom Quote

Key Benefits Of

Semi-Automatic Sealing Equipment

Efficiency
Efficiency

Automatic Feeding

Fast, Reliable Sealing

MODULAR
MODULAR

Original Modular Design

Improves Machine Longevity

Expandable & Configurable

Simplicity
Simplicity

Easy to Install, Maintain and Operate

Semi-Automatic Sealers

Semi-Automatic Sealers

Need More From Your Packaging Solution?

We provide add-ons to our equipment such as printers, trimmers, compression belts, heavy-duty conveyors and embossers. These systems work in conjuction with our sealers to customize our sealer to your needs. Most add-ons can be added at any time to our sealers if you're looking to add to existing Plexpack equipment or in the future as your needs change.

Learn About Our Add-Ons
