Validatable Sealers

Unparalleled Seal Integrity.

Validatable Medical, Pharmaceutical and Nutraceutical Packaging
Emplex validatable bag sealers continuously verify temperature, speed, pressure during production. Advanced digital controls, calibration, process management, productivity data, and alarms virtually eliminate human error. Validatable vacuum and gas flush sealers add continuous monitoring and calibration of modified atmosphere. Emplex validatable sealers deliver strong hermetic seals on tyvek, foil, poly bags and other materials used for medical packaging.

Key Benefits

Validatable
Validatable
Validatable Seal Integrity
Standard Control
Standard Control

Easy-use touchscreen, cusomtoizable selaing recipes, diagnostics

Simplicity
Simplicity

Easy to Install, Maintain and Operate

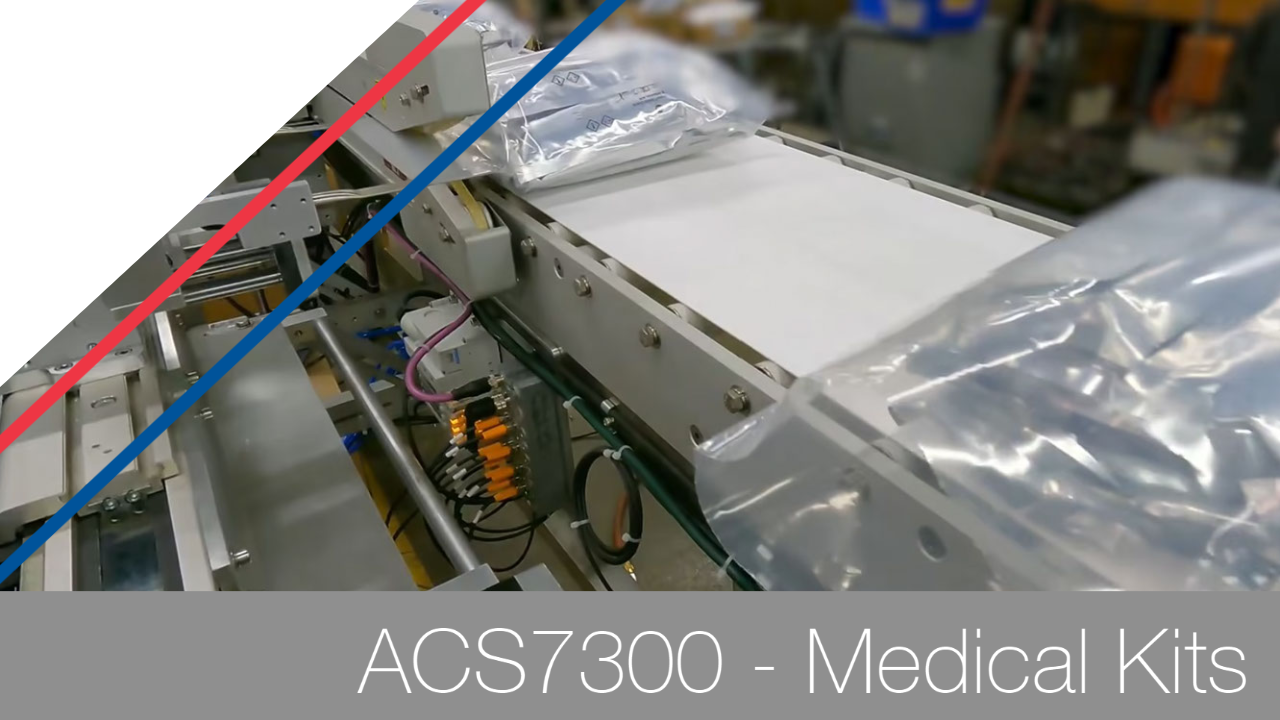

ACS7300 Validatable Sealer

ACS7300 Validatable Sealer

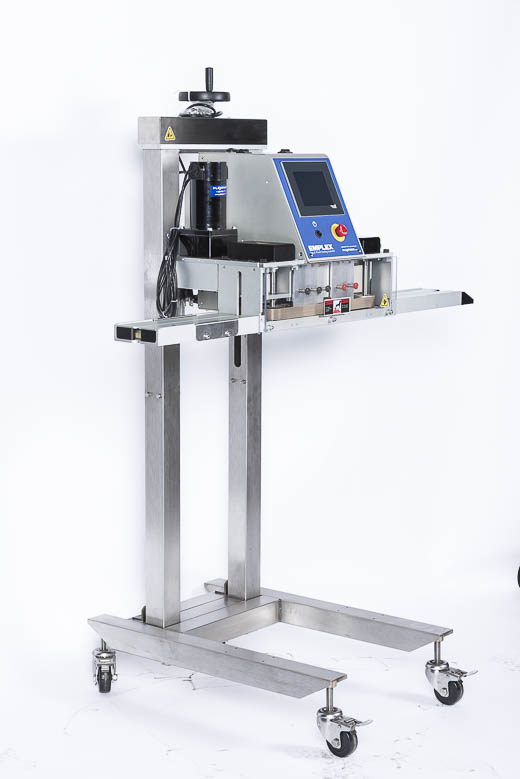

MPS 6300

MPS6300

The validatable MPS 6300 hermetically seals bags and pouches up to 2 lb/907 gm without a conveyor at speeds up to 1,000” per minute, depending on bag thickness. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display.

 Sealing Features
Standard

 Sealer Duty

 Continuous

Sealer Orientation

 Vertical or Horizontal

Sealer Bands

 Teflon

Seal Width

Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)

Seal Throat Depth

2.75” (70 mm)



Dimensions & Construction
Standard

Frame Construction

304 Stainless steel frame and legs

Infeed Direction

Right to Left or Left to Right

Height Adjustment

Hand Crank

Pressure Rollers

Stainless Steel or Rubberized

 Electrical

Option of: 120 V 6 A or 220V 12 A
Operations & Controller
Standard
Variable Speed  Up to 500" (13 m) per minute
Temperature Range 0-200 C ( 0-392 F)

Heating and Cooling Capacity

 5" (12.7 cm heating bars); 5" (12.7 cm cooling bars)

Controller

Industrial PC and 5.7” Color touchscreen interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



Maintenance
Standard
Seal Bands  Easy-access, tool-less changeover
 Cleaning  Standard cleaning, wipe-down





















Options

 Stainless Sealer Band

Extended Height Stands

4" (10.16 cm) additional seal throat depth

Washdown Capable

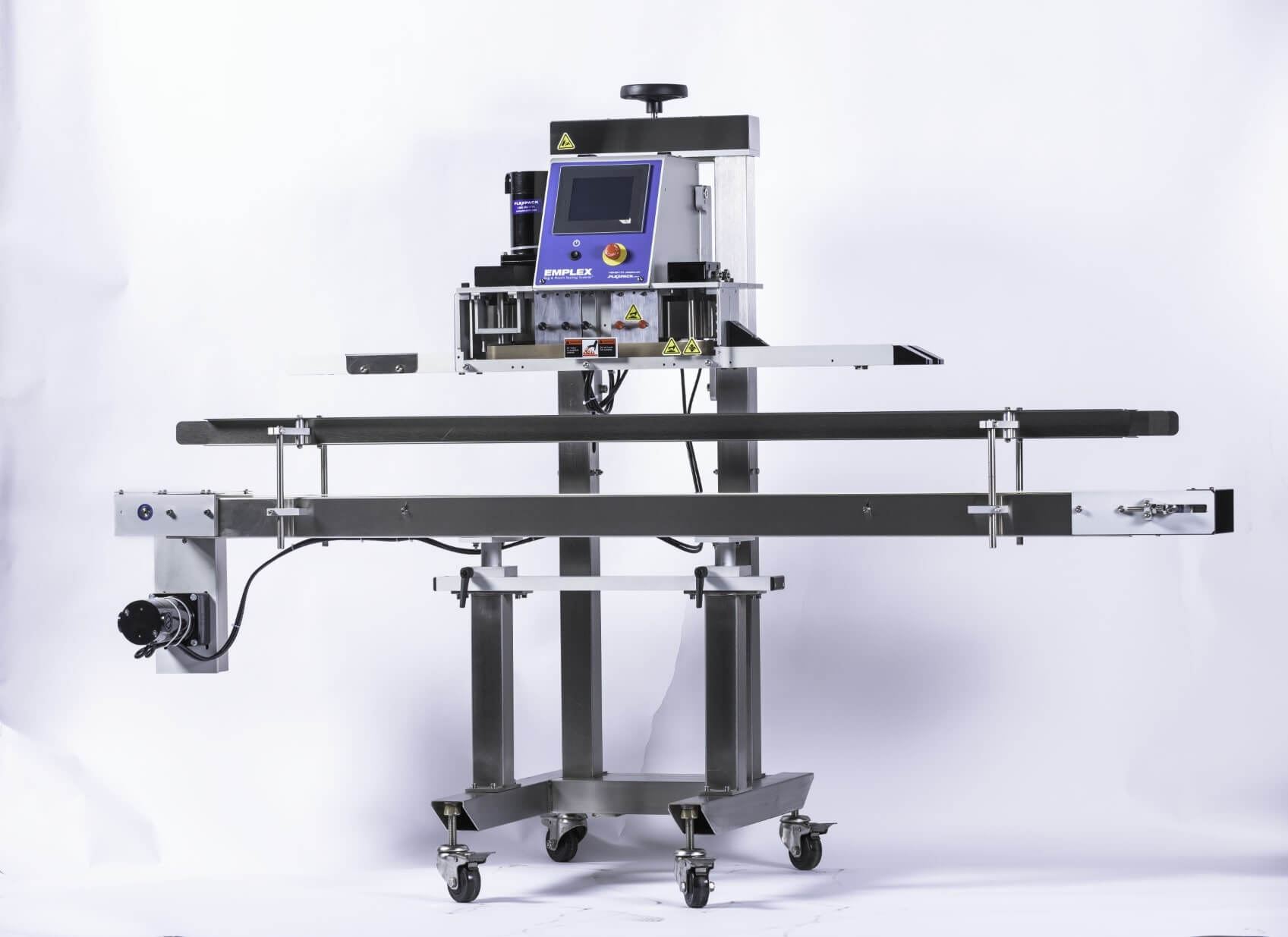

MPS 6700

MPS6700

The validatable MPS6700 is equipped with a stainless steel, food and medical-grade 6 in. x 6 ft (15.2 cm x  182.9 cm) conveyor and guide rails. The standard conveyor is adjustable and suitable for many bag sizes. Customizable conveyors are available to accommodate any bag size or weight. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display.



Sealing Features

Standard
Sealer Duty   Continuous
Sealer Orientation   Vertical or Horizontal
Sealer Band   Teflon
Sealing Width   Choice: 1/8" (3.2 mm), 1/4" (6.35 mm), 3/8" (9.5 mm), 1/2" (12.7 mm ), 3/4" (19.05 mm)
Seal Throat Depth  2.75" (70 mm)




Dimensions & Construction
Standard
Frame Construction  304 Stainless Steel frame and legs
 Conveyor Medical/Food Grade 6in x 6ft (15.3 cm x 182.9 cm) SS
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment Crank
 Pressure Rollers  Stainless steel or Rubberized
 Electrical   120V 12A or 220V 6A



Operations & Controller
Standard
 Variable Speed Up to 500” /12.7 m per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 5” (12.7 cm) heating bars and 5” (12.7 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning Standard cleaning and wipe down





















Options
 Stainless Sealer Band
 Extended Height Stands
 Custom Conveyors
4"/10.16 cm additional throat depth











validatable high speed heavy duty sealer

MPS14000

Plexpack's MPS 14000 is a versatile high performance sealer that provides an ideal solution for a wide range of applications where high throughput and validatable sealing are priorities. The MPS 14000 provides high speed hermetic sealing on any type of heat sealable bag, up to 12 mil/300 micron thick (6 mil/150 micron maximum when gusseted). The sealing process can be adjusted to accommodate variations in material and bag style, ensuring reliable seal integrity on every bag.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” / 3.2 mm,
1/4” / 6.35 mm, 3/8” / 9.5 mm,
1/2” 12.7 mm, 3/4” /19.05 mm
 Seal Throat Depth 3.5” / 8.9 cm



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame and Legs
 Infeed Direction  Right to Left or Right to Left
 Height Adjustment 25.25” -57.5” (645-1,457 mm) by crank
 Pressure Rollers Stainless Steel
 Electrical 208-240V 1PH, 50/60Hz 13 A
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 1500” (38.10 m) per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 20” (50.8 cm) heating bars
15” (38.1 cm) air cooling
 Pressure Range 0-5 bar (0-72.5 PSI)
 Contoller

Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.

Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning NEMA 4/4X Washdown capable



























Options

 Stainless Sealer Band
 Rubberized Pressure Roller
0-230 degrees Celsius Temperature Range
0-446 degrees Fahrenheit Temperature Range
5.5” (14 cm) throat depth
Extended Height Stands or Table Top Frame
Custom Conveyors

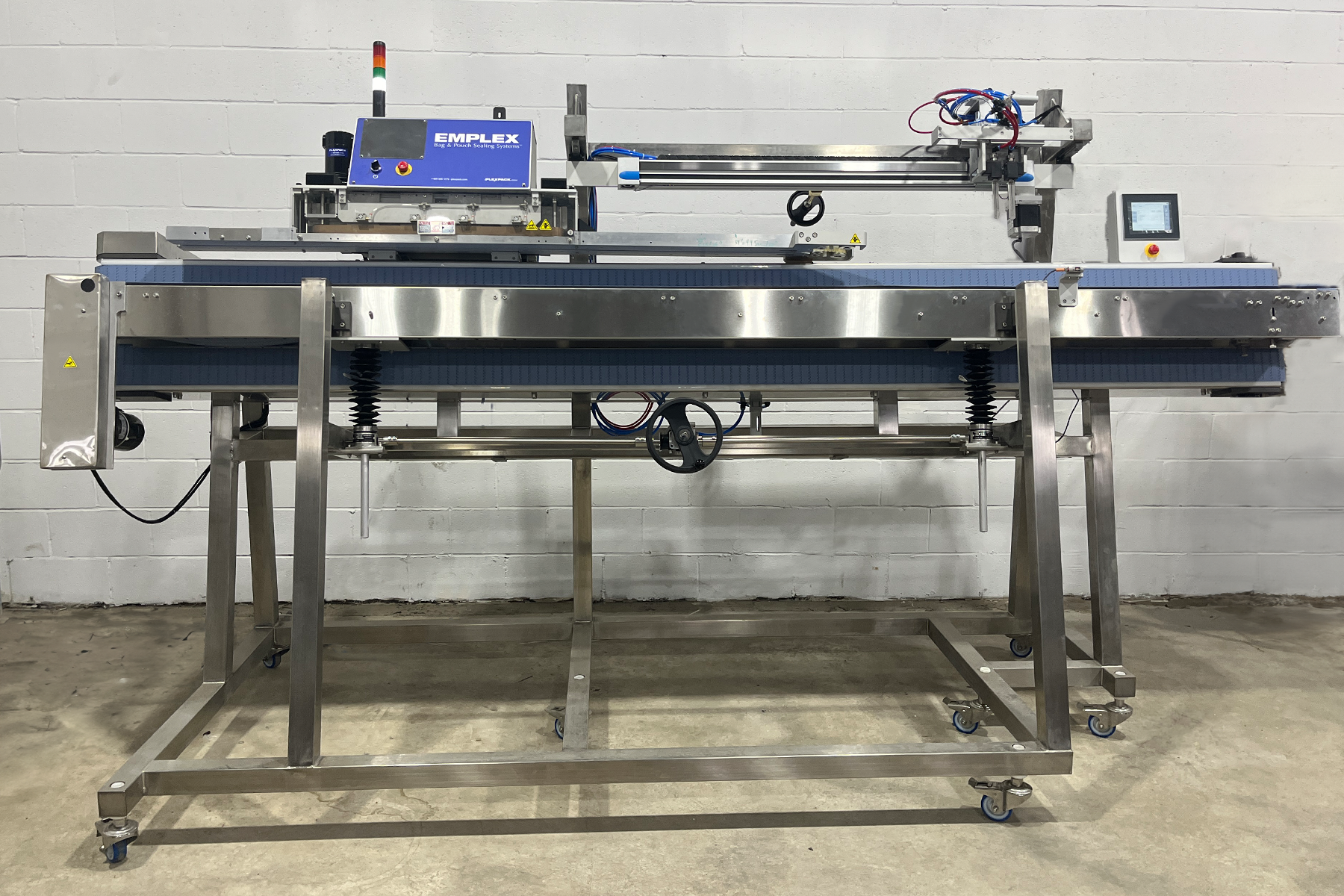

ACS7300

ACS7300

The validatable ACS Series delivers high speed sealing for horizonal and angled product handling applications. Multiple standard conveyor lengths and angle orientations, industry leading performance and flexible loading options meet the most demanding validatable bag sealing needs. You can configure infeed direction, sealer orientation, sealing width, and pressure roller type. The ACS is also available with vacuum/gas flush capabilities. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-touse industrial PC and 5.7” touchscreen display.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Angled or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4”  (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)



 Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel frame and legs
Infeed Direction  Right to Left or Left to Right
 Angle Options  0 to 60 degrees
 Pressure Rollers  Stainless Steel
Electrical   120V 12A
 Motor ¼ HP PWM PMDC
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 1000” (25 m) per minute
 Temperature Range 0-232 degrees Celsius /
0-450 degrees Fahrenheit
 Heating and Cooling Capacity 5-10” (12.7 -25.4 cm) heating bars
5-10” (12.7 - 25.4 cm) cooling bars
 Conveyor Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m)
Standard width: 12” (30.48 cm)
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning NEMA 4/4X Washdown capable






























Options
 Stainless Sealer Band
 Rubberized Pressure Roller
4” (10.6 cm) throat depth
 Vacuum/Gas Flush
Specialized and Custom conveyors

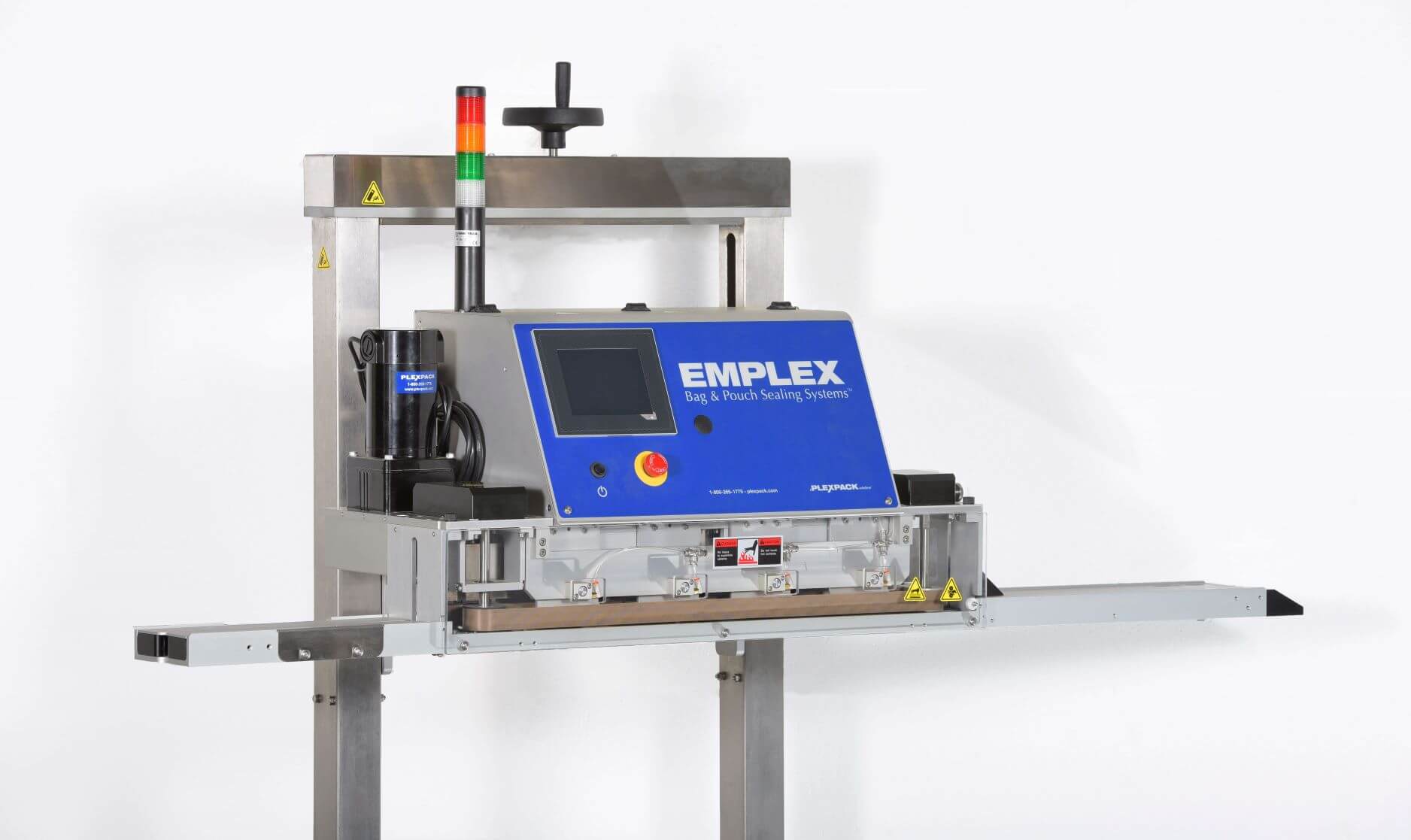

MPS 7300

MPS7300

The validatable MPS 7300 sets the standard for high speed or heavy duty medical bagging applications that require seal verification. The MPS 7300 hermetically seals bags and pouches up to 12 mil/300 micron(6 mil/150 micron when gusseted) at speeds up to 1000 inches(25.4 m) per minute and can be configured for manual, semi-automatic, or automatic loading. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display.

 Sealing Features
Standard
 Sealer Duty  Continous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” / 3.2 mm,
1/4” / 6.35 mm, 3/8” / 9.5 mm,
1/2” 12.7 mm, 3/4” /19.05 mm
 Seal Throat Depth 2.75” / 70 mm



Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel frame and legs
 Infeed Direction Right to Left or Left to Right
 Height Adjustment Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical  110V 12A or 220V 6A



 Operation & Controller
Standard
Variable Speed  Up to 800” /20 m per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
Heating and Cooling Capacity  10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Seal Band Easy-access, tool-less changeover
Cleaning Standard cleaning and wipe down





















Options

 Stainless Sealer Band
 Extneded Height Stands
 Custom Conveyors
4”/ 10.16 cm additional throat depth











MPS 7700

MPS7700

The validatable MPS7700 sets the standard for high speed or heavy duty medical bagging applications that require seal verification. The MPS 7300 hermetically seals bags and pouches up to 12 mil/300 micron(6 mil/150 micron when gusseted) at speeds up to 1000 inches(25.4 m) per minute and can be configured for manual, semi-automatic, or automatic loading. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display.

 Sealing Features
Standard
 Sealer Duty   Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
Seal Throat Depth 2.75” (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame and Legs
 Conveyor Medical/Food-Grade 6 in. x 6 ft (15.2 cm x 182.9 cm) stainless steel
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical  120V 12A or 220V 6A
 Operations & Controller
Standard
Variable Speed  Up to 800” (20 m) per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



Maintenance
Standard
 Seal Band  Easy access, tool-less changeover
 Cleaning Stnadard cleaning and wipe down























Options
 Stainless Sealer Band
 Extended Height Stands
 Custom Conveyors
4" (10.16 cm) additional throat depths

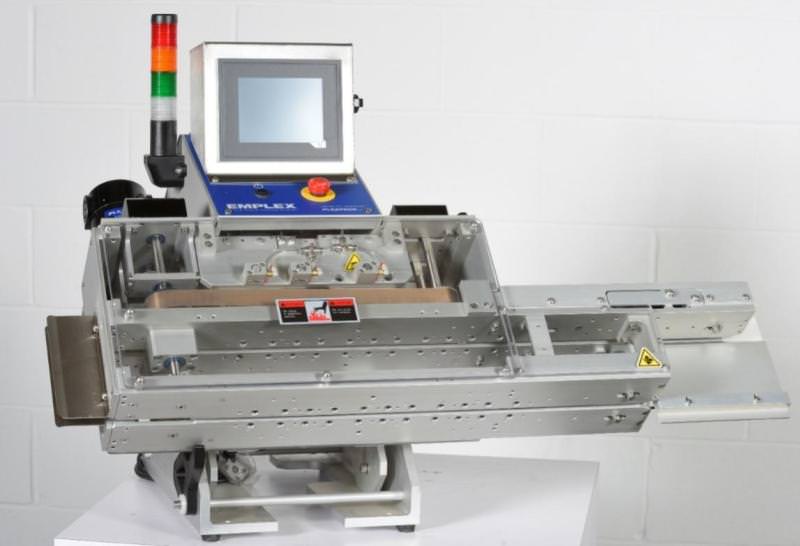

MPS 6340

MPS6340

The Emplex MPS6340 delivers validatable seals forcustomers who require high quality bags and pouches in a compact tabletop design. The MPS 6340 is a low maintenance machine with standard features not typically found on tabletop sealers. The MPS 6340 hermetically seals bags and pouches up to 8 oz. (227 gm), depending on bag width and thickness. The sealing head is adjustable for optimum packaging efficiency. All bag sealing processes are digitally controlled, monitored, calibrated, verified and reported through an easy-to-use industrial PC and 5.7” touchscreen display.



 Sealing Feautres
Standard
Sealer Duty   Continuous
 Selaer Orientation  Vertical
 Sealer Band  Teflon
 Sealing Wdith Choice of: 1/8” / 3.2 mm,
1/4” / 6.35 mm, 3/8” / 9.5 mm,
1/2” 12.7 mm, 3/4” /19.05 mm
 Seal Throat Depth 2.75" (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel frame
 Infeed Direction  Right to Left or Left to Right
 Sealer Adjustment 0, 45 or 90 degrees
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical  120V 12A or 220V 6A
 Motor 1/4HP PWM PMDC
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 300” /7.62 m per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Seal Band Easy-access, tool-less changeover
Cleaning Standard cleaning and wipe down
















Options
 Stainless Sealer Band
 Horizontal Product Shelf
4”/ 10.16 cm additional throat depth











Thank you for contacting us. We will be in touch shortly.

There was an Error Submitting this Form
