Impulse Bag Sealers | Vacuum & Gas Flush MAP Equipment

VacPack™ Impulse Heat Sealer

For Vacuum & Gas Flush Modified Atmosphere Packaging

Plexpack’s VacPack™ impulse vacuum sealers set the standard for food, protein, electronics and medical packaging that require a heavy duty, wipedown vacuum and gas flush sealer at a moderate investment. Plexpack’s VacPack™ Series are robust, stainless steel food-grade sealers that create vacuum and gas flushed industrial sealed bags for a wide range of package sizes, including extra wide and heavy products. Available for tabletops.

Get A Quote  Call Us Today

Impulse Bag Sealers | Vacuum & Gas Flush MAP Equipment

VacPack™ Impulse Hand Bag Sealer Machines

View VacPack™ hand sealers below.

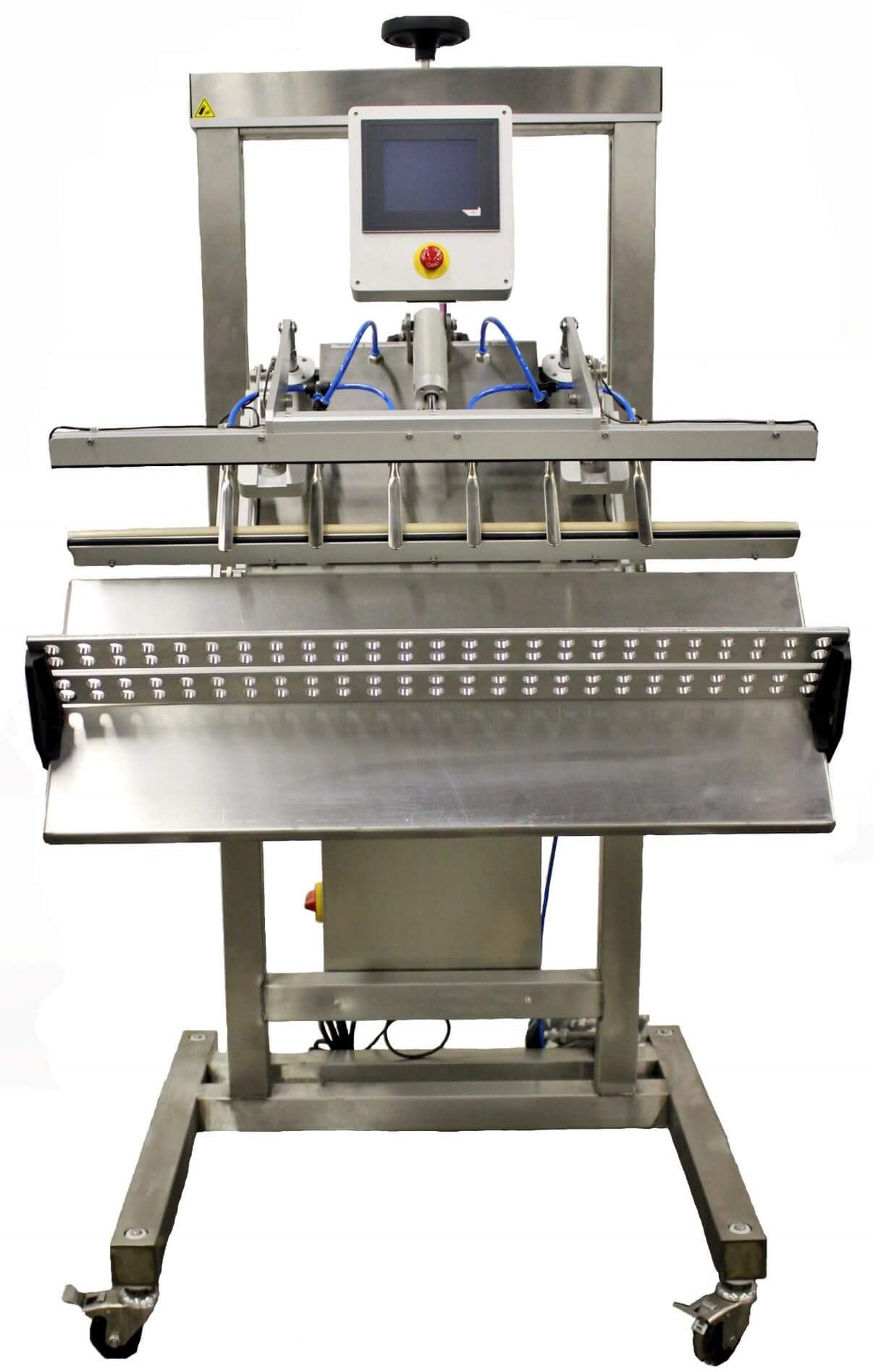

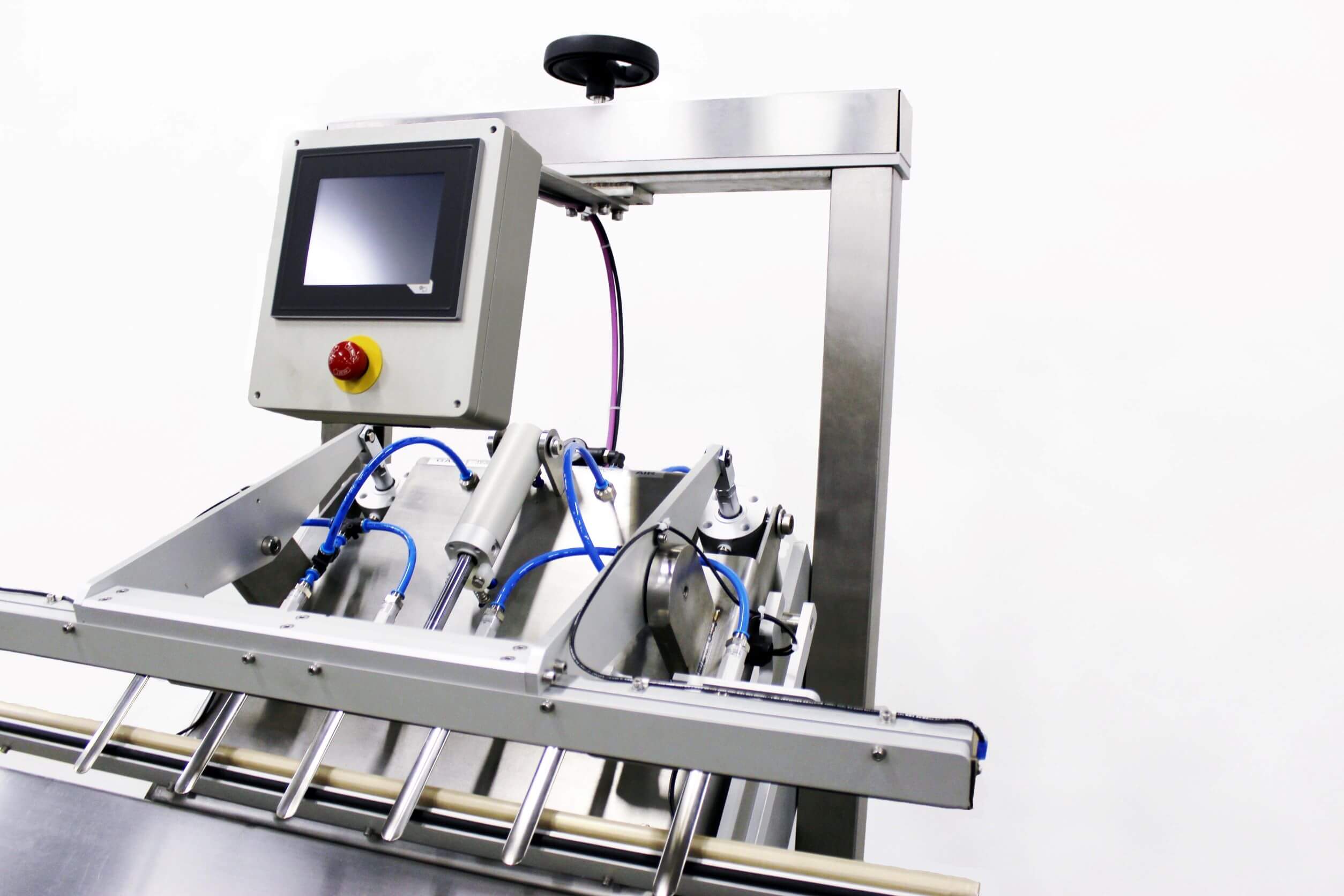

VacPack Impulse Sealer

VP

VacPack VP Series are robust, stainless steel food grade sealers that create a modified atmosphere package for a wide range of product sizes, including extra wide and heavy products. VacPack sealers employ an ejector style vacuum pump and produce hermetically sealed packages on any heat sealable bag up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).

Brochure VacPack VP

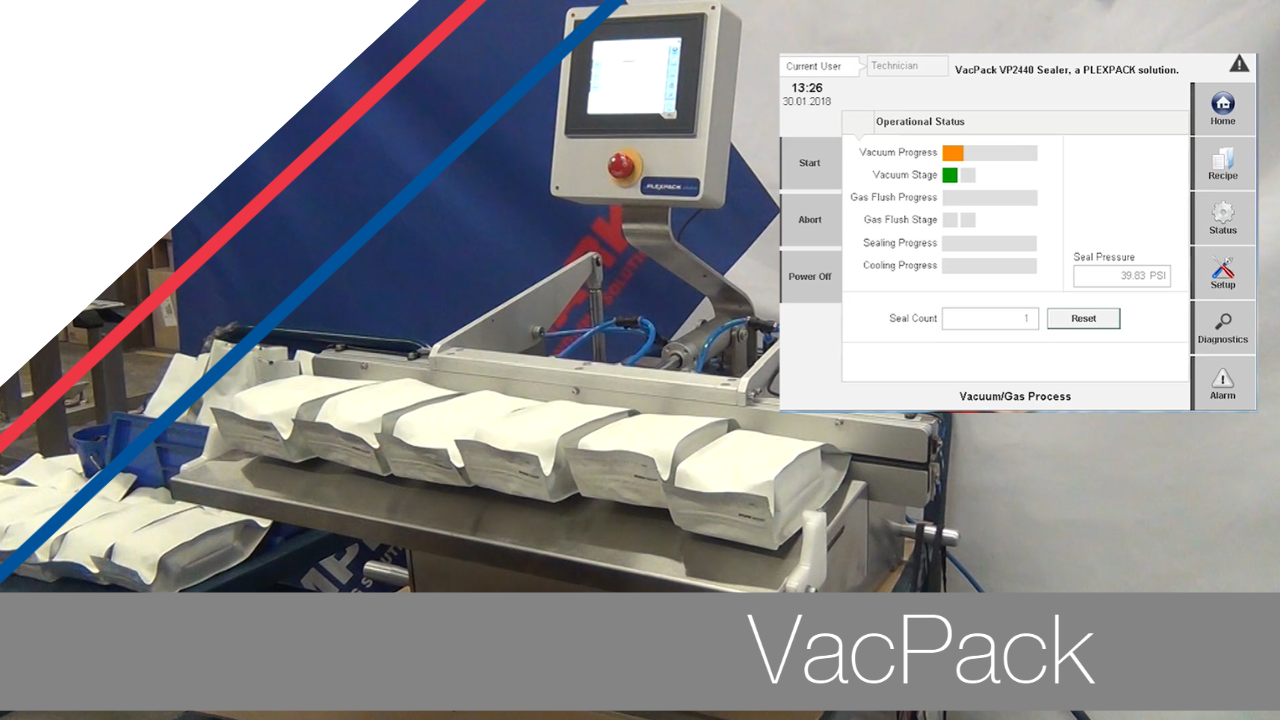

Video VacPack VP Vacuum Gas Flush Coffee Bags
 Sealing Features
Standard
 Sealer Duty Impulse
 Sealer Orientation  Vertical or Horizontal (table top or floor stand)
Multi Stage Vacuum/Gas Flush Ejector Style, Stainless Steel Nozzles
 Sealing Width 1/4” (6.35 mm)
 Seal Length 24" (60.9 cm), 30" (76.2 cm) or 36" (91.4 cm)
Throat Depth 5" (12.7 cm)





 Dimensions & Construction
Standard
 Frame Construction  316L Stainless Steel
 Height Adjustment  Crank on Florr Stand Models
 Electrical 115V 15A or 230V 8A
Air Requirement 15 CFM 80 PSI





 Operations & Controller
Standard
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.



 Maintenance
Standard
 Cleaning Standard cleaning and wipe down
Changeover

One touch removal of vacuum/gas
flush tubes

Easy change nichrome

Easy change Teflon covers











Options
Additional Nozzles
Extended Seal Length
Washdown Nema 4 or Nema 4x
Product Shelf
Washdown

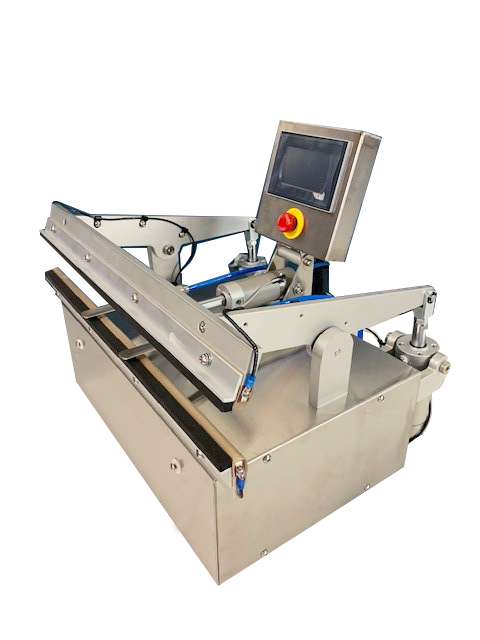

VacPack Impulse Sealer

VS

Plexpack’s VacPack VS1 is a robust, impulse sealer that produces hermetically sealed packages on any heat sealable bag up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). VS1 sealers provide multistage vacuum and gas flash for softer vacuums and lower residual oxygen levels. The standard model employs two 316L grade stainless steel ejector style vacuum pumps for strong gas and vacuum flows.

Brochure VacPack VS
Video VacPack VS Vacuum Gas Flush Snack Bags
 Sealing Features
Standard
 Sealer Duty Impulse
 Sealer Orientation Horizontal (table top)
Multi Stage Vacuum/Gas Flush Ejector Style, Stainless Steel Nozzles
 Sealing Width 1/4” (6.35 mm)
 Seal Length 20" (50.8 cm), 25" (63.5 cm) or 30" (76.2 cm)
Throat Depth 5" (12.7 cm)



 Dimensions & Construction
Standard
 Frame Construction  316L Stainless Steel
 Electrical 120V 12A or 220V 6A
Air Requirement 15 CFM 80 PSI





 Operations & Controller
Standard
 Controller 4.3” Color Touchscreen Controller on
adjustable angled base.
• Recipe management and selection
for different materials and products.







 Maintenance
Standard
 Cleaning Standard cleaning and wipe down
Changeover

One touch removal of vacuum/gas
flush tubes

Easy change nichrome

Easy change Teflon covers



Options
Additional Nozzles
Extended Seal Length
Washdown Nema 4 or Nema 4x
Product Shelf
Floor stand with adjustable angle











What Are

Impulse Bag Sealers

An impulse bag sealer is a type of heat sealer specifically designed to create a quick, strong seal on various flexible packaging materials. Unlike continuous band sealers that apply constant heat, impulse heat sealers utilize a short burst of high heat to melt and fuse the bag material. This method ensures an energy-efficient and reliable seal, making them a popular choice for both small-scale operations and light industrial applications.

These versatile sealing machines are adept at sealing a wide range of plastic bags, including poly bags, mylar bags, and foil bags, to create an airtight seal that helps preserve product freshness. Common types include the portable impulse hand sealer, often used for smaller batches, and tabletop sealers for more regular use. Key components include the heating element, which is crucial for forming the seal. Depending on the model, impulse sealers can produce different seal widths, such as a 2mm seal or a more robust 5mm seal, catering to various packaging needs and material thickness.

Users benefit from straightforward bag sealing processes, often guided by an instruction manual, with features like adjustable temperature control to suit different bag materials. Maintaining these devices is simple, with spare parts readily available, and operator training is generally minimal due to their user-friendly design.

Key Benefits Of

Vacuum Impulse Bag Sealer Machines

SMALL FOOTPRINT
SMALL FOOTPRINT
Plug and Play
Plug and Play
Simple Control
Simple Control

VacPack™ Solutions

Our VacPack™ impulse-style professional vacuum sealer machines bring simplicity to sealing with customizable cycles, simple controls & maintenance, and an easy-to-clean design for plastic bag sealing.

View Other VacPack™ Solutions

Open Vimeo video

VacPack™ Solutions

Industry Applications For

Impulse Vacuum Sealers

Multiple industries can benefit from the use of our automatic and semi-automatic impulse vacuum sealers.

Food Packaging

Whether fresh or frozen, the impulse bag sealer is ideal for use in food packaging. When packaging fresh food, such as meats, the impulse vacuum sealer can create modified atmosphere bags. These bags keep food fresh longer. An automatic impulse pouch sealer can also create a modified atmosphere bag that preserves frozen food, keeping away ice crystals and freezer burn.

Retail and Merchandise

Impulse bag sealers have broad applications in packaging merchandise for retail sale. Whether your company produces consumer electronics, pet products or household cleaners, an impulse vacuum sealer can create a modified atmosphere that meets your needs.

Medical

Some medical devices and equipment must be stored in specific conditions to prevent contamination or a breakdown in quality. An impulse bag sealer can create the ideal, sterile conditions for storing individual syringes, specimen cups and IV bags.

Agriculture

Impulse bag sealers deliver speed and precision when sealing agricultural supplies, such as mulch, seeds and soil.

Cosmetics

Cosmetics such as perfume and makeup are delicate products that need the right handling and environment. Impulse bag sealers create the ideal conditions for preserving and prolonging their shelf life.

Customizable Impulse Bag Sealing Solution

Plexpack is your source for flexible solutions that deliver certain results. Contact us today to learn more about our impulse bag sealers.
