PlexPack | Industrial Vacuum Bag Sealers | High Speed, Heavy Duty

High Speed/ Heavy Duty Bag Sealer

validatable high speed heavy duty sealer

MPS14000

Plexpack's MPS 14000 is a versatile high performance sealer that provides an ideal solution for a wide range of applications where high throughput and validatable sealing are priorities. The MPS 14000 provides high speed hermetic sealing on any type of heat sealable bag, up to 12 mil/300 micron thick (6 mil/150 micron maximum when gusseted). The sealing process can be adjusted to accommodate variations in material and bag style, ensuring reliable seal integrity on every bag.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” / 3.2 mm,
1/4” / 6.35 mm, 3/8” / 9.5 mm,
1/2” 12.7 mm, 3/4” /19.05 mm
 Seal Throat Depth 3.5” / 8.9 cm
 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame and Legs
 Infeed Direction  Right to Left or Right to Left
 Height Adjustment 25.25” -57.5” (645-1,457 mm) by crank
 Pressure Rollers Stainless Steel
 Electrical 208-240V 1PH, 50/60Hz 13 A
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 1500” (38.10 m) per minute
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 20” (50.8 cm) heating bars
15” (38.1 cm) air cooling
 Pressure Range 0-5 bar (0-72.5 PSI)
 Contoller

Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.

Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.

 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning NEMA 4/4X Washdown capable
Options

 Stainless Sealer Band
 Rubberized Pressure Roller
0-230 degrees Celsius Temperature Range
0-446 degrees Fahrenheit Temperature Range
5.5” (14 cm) throat depth
Extended Height Stands or Table Top Frame
Custom Conveyors

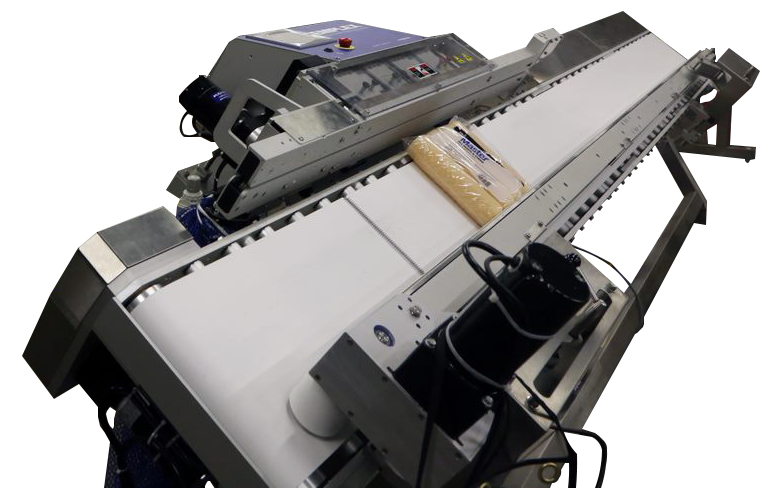

ACS7200

ACS7200

The Emplex ACS Series delivers high speed sealing for horizonal and angled product handling applications. The ACS 7200 comes with 10 inches (25.4 cm) of heat and 10 inches (25.4 cm) of cooling. Sealing processes can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. The ACS seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). Common upgrades include inkjet printers, bag top trimmers, camera systems and robotic handling.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Angled or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4”  (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)
 Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel frame and legs
Infeed Direction  Right to Left or Left to Right
 Angle Options  0 to 60 degrees
 Pressure Rollers  Stainless Steel
Electrical   120V 12A
 Motor ¼ HP PWM PMDC
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 1000” (25 m) per minute
 Temperature Range 0-232 degrees Celsius /
0-450 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Conveyor Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m)
Standard width: 12” (30.48 cm)
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning NEMA 4/4X Washdown capable

Options
 Stainless Sealer Band
 Rubberized Pressure Roller
4” (10.6 cm) throat depth
 Vacuum/Gas Flush
Specialized and Custom conveyors
ACS6200

ACS6200

The Emplex ACS Series delivers high speed sealing for horizonal and angled product handling applications. The ACS6200 comes with 5 inches (12.7 cm) of heat and 5 inches (12.7 cm) of cooling. Sealing processes can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag. The ACS seals any heat sealable bag and pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted). Common upgrades include inkjet printers, bag top trimmers, camera systems and robotic handling.

 Sealing Features
Standard
 Sealer Duty  Continuous
 Sealer Orientation  Angled or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4”  (19.05 mm)
 Seal Throat Depth 2.75” (70 mm)
 Dimensions & Construction
Standard
 Frame Construction 304 Stainless Steel frame and legs
Infeed Direction  Right to Left or Left to Right
 Angle Options  0 to 60 degrees
 Pressure Rollers  Stainless Steel
Electrical   120V 12A
 Motor ¼ HP PWM PMDC
 SPL 60 db
 Operations & Controller
Standard
 Variable Speed Up to 1000” (25 m) per minute
 Temperature Range 0-232 degrees Celsius /
0-450 degrees Fahrenheit
 Heating and Cooling Capacity 5” (12.7 cm) heating bars
5” (12.7 cm) cooling bars
 Conveyor Food/Medical Grade. Choice of Length: 6’ (1.83m), 9’(2.74m), 12’ (3.66m), 15’ (4.57m)
Standard width: 12” (30.48 cm)
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
 Seal Band  Easy-access, tool-less changeover
 Cleaning NEMA 4/4X Washdown capable

Options
 Stainless Sealer Band
 Rubberized Pressure Roller
4” (10.6 cm) throat depth
 Vacuum/Gas Flush
Specialized and Custom conveyors
MPS7100 continous band sealer

MPS7100 continuous band sealer

The MPS7100 hermetically seal bags and pouches at speeds up to 800 inches (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing process can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag.  It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).

 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75" (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  204 Stainless Steel Frame LEgs
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
Seal Band   Easy-access, tool less changeover
 Cleaning Standard cleaning and wipe down
Options
 Stainless Steel Sealer Band
 Extended Height Stands
4”(10.16 cm) additional throat depth
Washdown Nema 4 or Nema 4x
Custom Conveyor widths and lengths
MPS7100

MPS7100

The MPS7500 hermetically seal bags and pouches at speeds up to 800" (20.32 m) per minute and can be configured for manual, semi-automatic, or automatic loading. The sealing prcess can be adjusted to accommodate variations in material, ensuring reliable seal integrity on every bag.  It can seal any heat sealable bag or pouch up to 12 mil/300 micron in thickness (6 mil/150 micron maximum when gusseted).



 Sealing Features
Standard
 Sealer Duty Continuous
 Sealer Orientation  Vertical or Horizontal
 Sealer Band  Teflon
 Sealing Width Choice of: 1/8” (3.2 mm),
1/4” (6.35 mm), 3/8” (9.5 mm),
1/2” (12.7 mm), 3/4” (19.05 mm)
 Seal Throat Depth 2.75" (70 mm)



 Dimensions & Construction
Standard
 Frame Construction  304 Stainless Steel Frame Legs
Conveyor Food Grade 6" x 6 ft (15.2 cm x 182.9 cm) SS
 Infeed Direction  Right to Left or Left to Right
 Height Adjustment  Crank
 Pressure Rollers  Stainless Steel or Rubberized
 Electrical 120V 12A or 220V 6A
 Operations & Controller
Standard
 Variable Speed 800" per minute (20.32 m per minute)
 Temperature Range 0-200 degrees Celsius /
0-392 degrees Fahrenheit
 Heating and Cooling Capacity 10” (25.4 cm) heating bars
10” (25.4 cm) cooling bars
 Controller Industrial PC and 5.7” Color Touchscreen Interface
Single-point setting for speed, temperature, and pressure.
Recipe management and selection for different materials and products.
Production and user activity reporting and management tools.
Multi-Language preference settings.
Diagnostics and background monitoring of key processes and components to prevent
machine damage or product loss.
Maintenance alerts.
Pictorial maintenance guides and instructional tutorials.
 Maintenance
Standard
Seal Band   Easy-access, tool less changeover
 Cleaning Standard cleaning and wipe down
Options
 Stainless Steel Sealer Band
 Extended Height Stands
4”(10.16 cm) additional throat depth
Washdown Nema 4 or Nema 4x
Custom Conveyor widths and lengths
